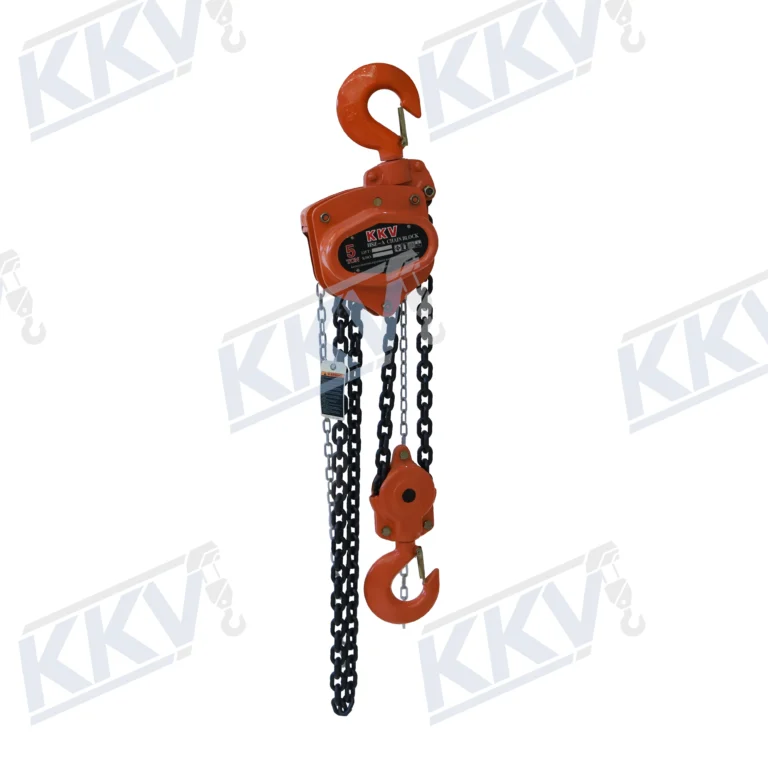

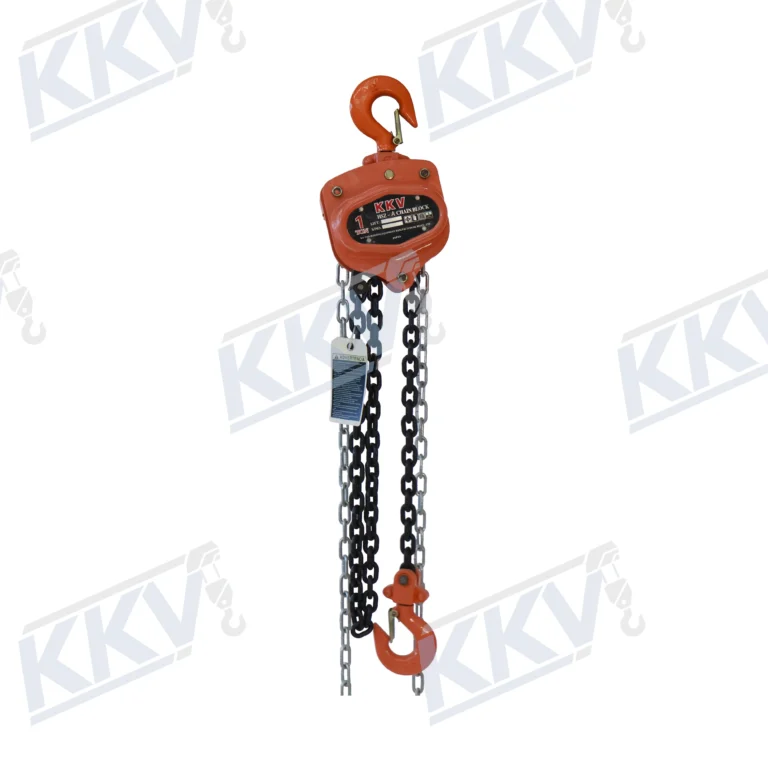

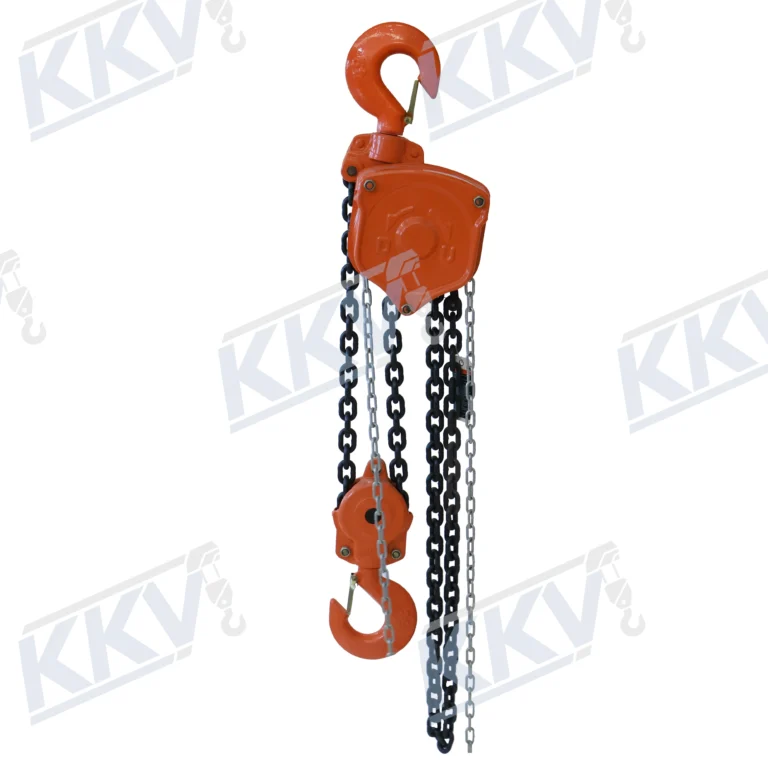

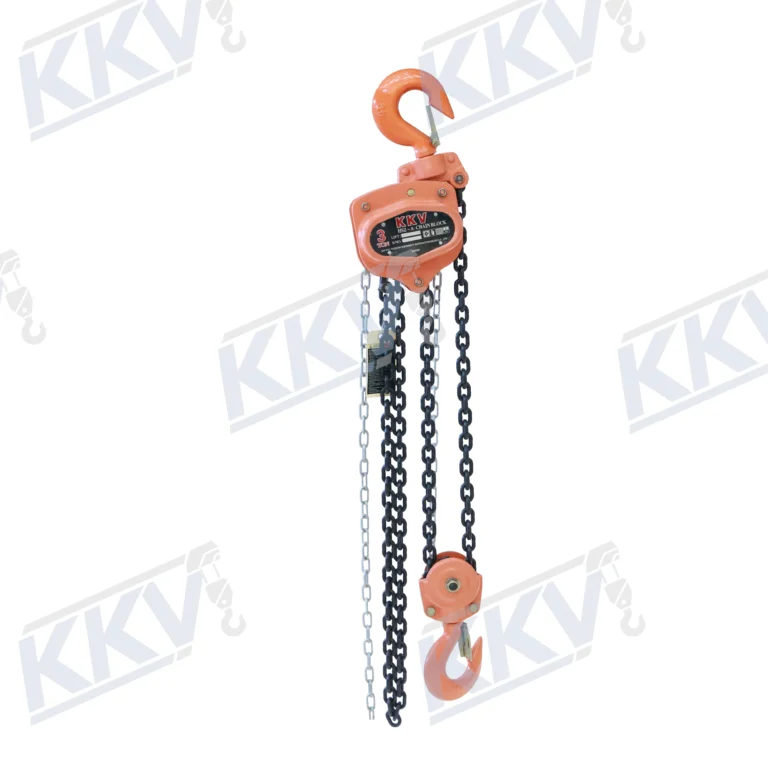

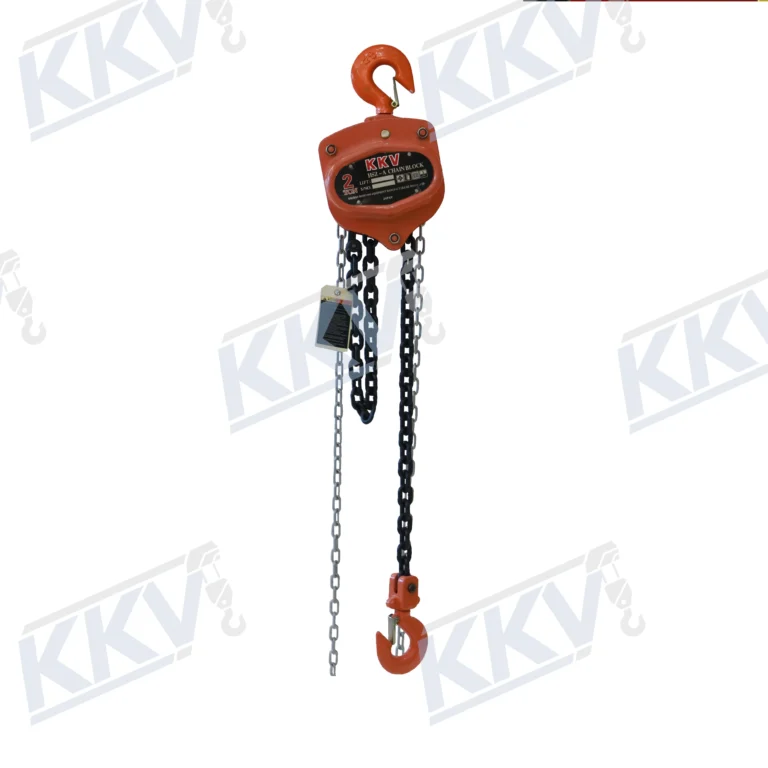

HSZ-A Manual Chain Hoist
The HSZ-A is a compact manual chain hoist for hand-operated industrial lifting without an electrical supply.
Listed standard capacities are 0.5–10 metric tonnes. Contact KKV to confirm other capacity requirements and specifications.
Heavy duty and compact design to meet all pertinent world standard
Reliable disc brake, premium grade alloy load chain and zinc plated hand chain as standard.
Drop-forged and expertly heat treated hooks for great strength and long wearing
Applications
The HSZ Series Manual Chain Hoist is ideal for lifting and material handling applications where electrical power is unavailable. Its compact structure, reliable performance, and portable design make it suitable for both indoor and outdoor operations.
Description
HSZ-A Heavy-Duty Manual Chain Hoist for Industrial Lifting
The KKV HSZ-A Manual Chain Hoist is a compact hand-operated
chain block designed for controlled vertical lifting in
workshops, factories, construction sites, maintenance areas
and general industrial environments.
Its manually operated lifting mechanism requires no external
power supply, making the HSZ-A suitable for permanent lifting
points as well as temporary work locations where electric
lifting equipment may be unnecessary or unavailable.
The series is available in rated capacities from
0.5T to 10T and combines a
G80 alloy steel load chain,
zinc-plated hand chain,
reliable disc brake and
forged, heat-treated 360° rotating hooks.

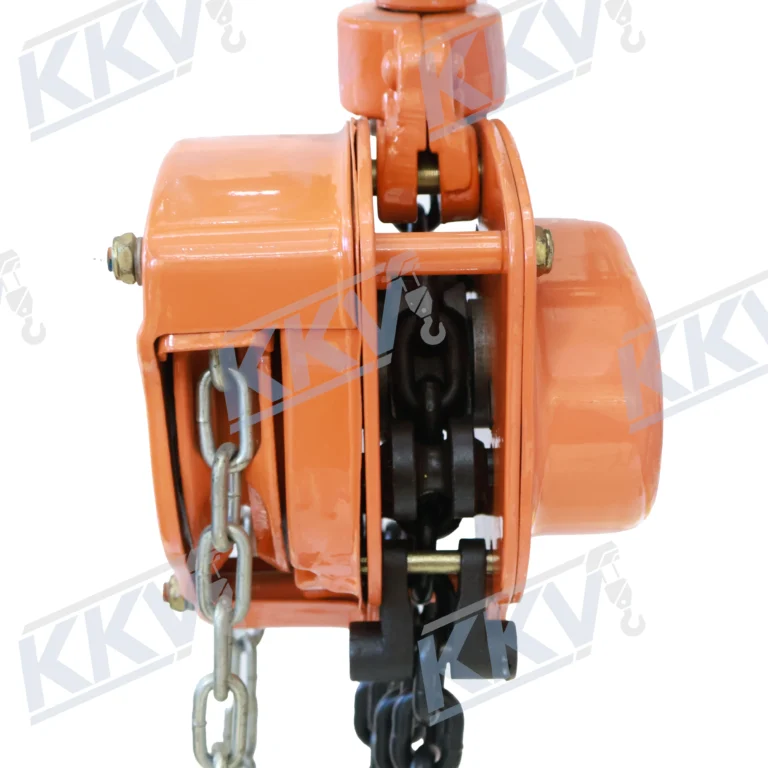

Compact Construction for Industrial Lifting
The HSZ-A combines a heavy-duty manual lifting configuration
with a compact chain-block structure, providing a practical
solution for industrial lifting where simple operation and
mechanical reliability are important.
Vertical Lifting
Raise machinery, equipment and materials during
installation, assembly and maintenance work.
Manual Operation
Operates through the hand chain without requiring
electricity or another external power source.
Compact Structure
Compact construction supports installation in
workshops, production areas and temporary lifting
locations.
0.5T–10T Range
Multiple capacities allow the HSZ-A series to cover
different general industrial lifting requirements.
Reliable Disc Brake
The HSZ-A is equipped with a
reliable mechanical disc brake
designed to support controlled load lifting and lowering
during manual operation.
The braking system works together with the internal lifting
mechanism to provide controlled hand-chain operation within
the rated load of the selected model.
G80 Load Chain and Zinc-Plated Hand Chain
The HSZ-A uses G80 alloy steel load chain
for lifting and a zinc-plated hand chain
for manual operation.
Load-chain diameter and the number of chain falls vary
according to the rated capacity of each model.
Load-chain specification is matched to the lifting
capacity of each HSZ-A model.
Zinc-plated hand chain is supplied for manual
lifting and lowering operation.

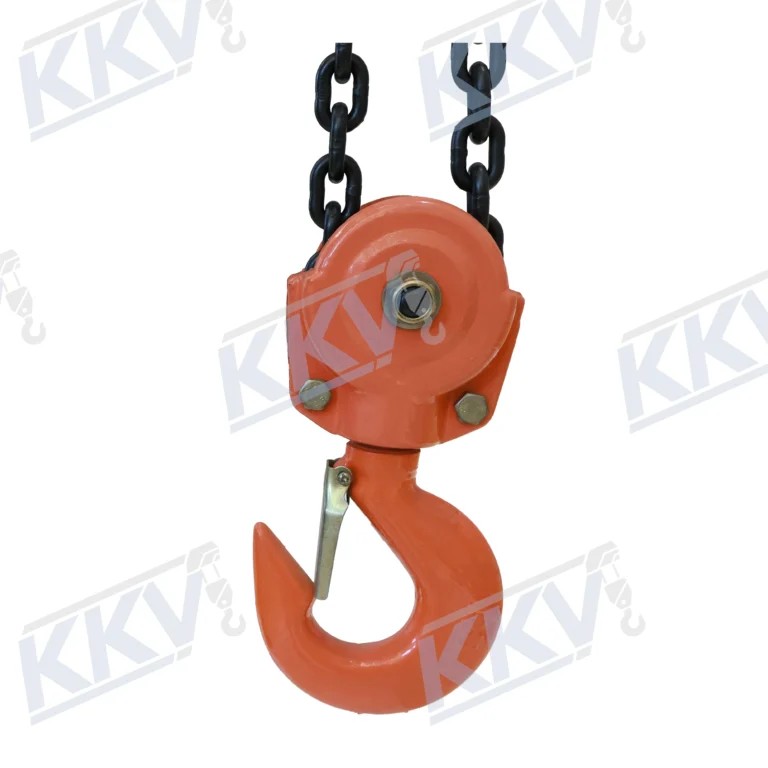

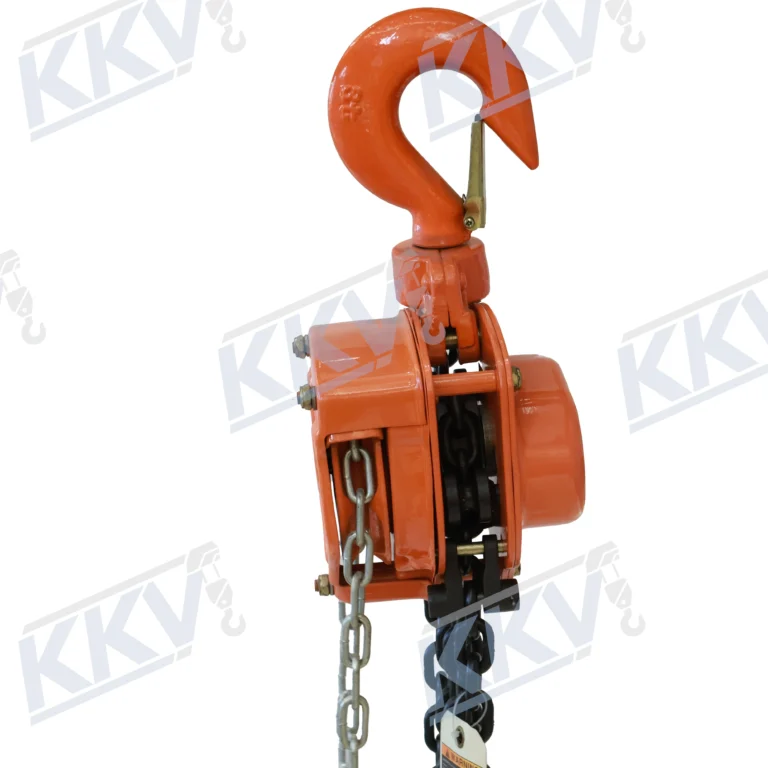

Forged and Heat-Treated 360° Rotating Hooks
The upper and lower hooks are
drop forged and heat treated
and feature 360° rotation to provide
greater flexibility when connecting the hoist and load.
Optional Load Limiter
A load limiter can be supplied as an optional
configuration for customers with additional
project or purchasing requirements.
Please specify the load-limiter requirement when requesting
a quotation so the appropriate HSZ-A configuration can be
confirmed before production.
Manual Lifting for Industrial Working Environments
Factories
General machinery and component lifting during
production, assembly and maintenance work.
Workshops
Controlled manual lifting for repair, assembly
and equipment servicing.
Construction
Temporary lifting where a manually operated chain
block is more practical than powered equipment.
Equipment Installation
Lifting and positioning machinery and components
during installation operations.
How to Select an HSZ-A Manual Chain Hoist
Select the appropriate model according to rated capacity,
lifting height, available headroom, hand-chain pull and
optional configuration requirements.
Rated Capacity
Choose a model that covers the maximum intended
working load. Available capacities are 0.5T,
1T, 1.5T, 2T, 3T, 5T and 10T.
Lifting Height
Check the standard lifting height against the
actual vertical travel required by the application.
Available Headroom
Compare the minimum distance between hooks with
the space available at the lifting location.
Operating Force
Compare the chain-pull force at full load when
choosing between different capacities.
Optional Load Limiter
Specify whether the optional load limiter is
required before confirming the order.
Product Inspection Before Shipment
The disc-brake mechanism is checked for normal
operating condition.
Load-chain and hand-chain movement are checked
during product inspection.
Hook condition, rotation and visible components
are checked before packing.
Housing, covers, fasteners and visible components
are inspected before shipment.
CE-Certified HSZ-A Manual Chain Hoist
The KKV HSZ-A Manual Chain Hoist series is CE-certified
for the applicable product configurations.
Seven Capacities from 0.5T to 10T
0.5T / 1T / 1.5T
2T / 3T
5T / 10T
Load limiter available
Routine Inspection Before Use
corrosion or other visible damage.
correctly through the hand wheel.
360° rotation without visible damage.
normally before applying the working load.
the chain hoist for lifting personnel.
HSZ-A Manual Chain Hoist Ordering Questions
Does t mean a US short ton?
The listed capacities use metric tonnes: 1 t equals 1,000 kg. A metric tonne differs from a US short ton, so state the required load in kilograms when requesting a quotation.
What information is needed for a quotation?
State the HSZ-A capacity, required lift, available headroom, quantity and delivery destination. Include any optional load-limiter requirement so KKV can confirm the configuration before ordering.
Need Technical Information?
Compare lifting capacities, standard lift, test load,
hook distance, chain specifications and weights.
Additional information
| Rated Capacity | 0.5~10T |
|---|---|
| Test Load | 1.5 × Rated Capacity |
| Net Weight | 8.4~77KG |
HSZ-A Manual Chain Hoist Specifications
Compare capacity, lifting height, test load, hook distance, operating force, chain configuration, weight and packing dimensions.
| Model | HSZ-A0.5 | HSZ-A1 | HSZ-A1.5 | HSZ-A2 | HSZ-A3 | HSZ-A5 | HSZ-A10 |
|---|---|---|---|---|---|---|---|
| Capacity (t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 |
| Standard Lift (m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3.5 |
| Test Load (t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 |
| Min. Distance Between Hooks (mm) | 285 | 315 | 340 | 380 | 475 | 600 | 700 |
| Chain Pull to Lift Full Load (N) | 25 | 33 | 34 | 34 | 35 | 39 | 41 |
| No. of Load Chain Fall Lines | 1 | 1 | 1 | 1 | 2 | 2 | 4 |
| Diameter of Load Chain (mm) | 6.3 | 6.3 | 7.1 | 8 | 7.1 | 9 | 9 |
| Net Weight (kg) | 8.4 | 11 | 13.5 | 21 | 22 | 40 | 77 |
| Gross Weight (kg) | 9.4 | 12 | 14.5 | 22 | 23 | 41.5 | 85 |
| Packing Dimensions L × W × H (cm) | 30 × 17 × 32 | 30 × 17 × 32 | 30 × 17 × 32 | 28 × 19 × 23 | 30 × 17 × 32 | 40 × 20 × 34 | 62 × 50 × 26 |
