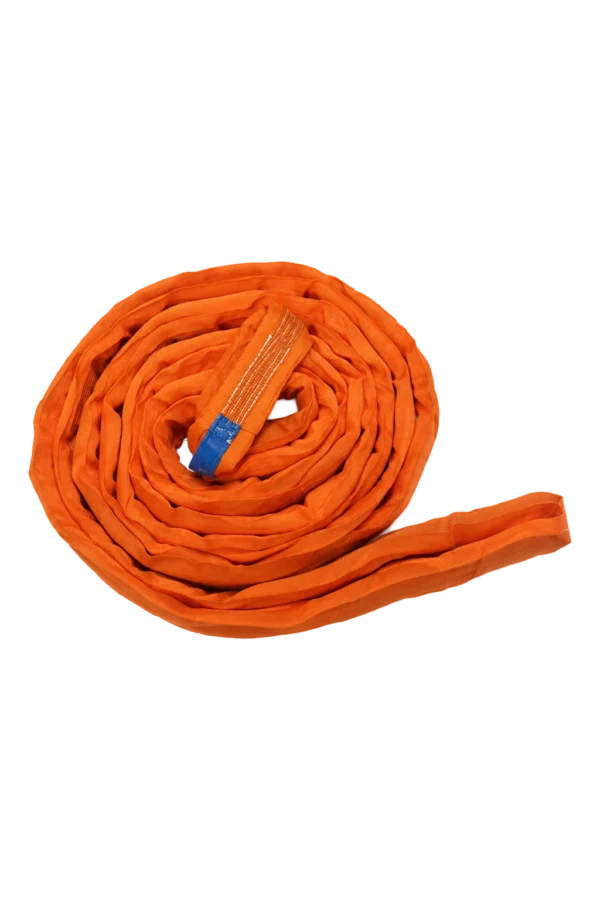

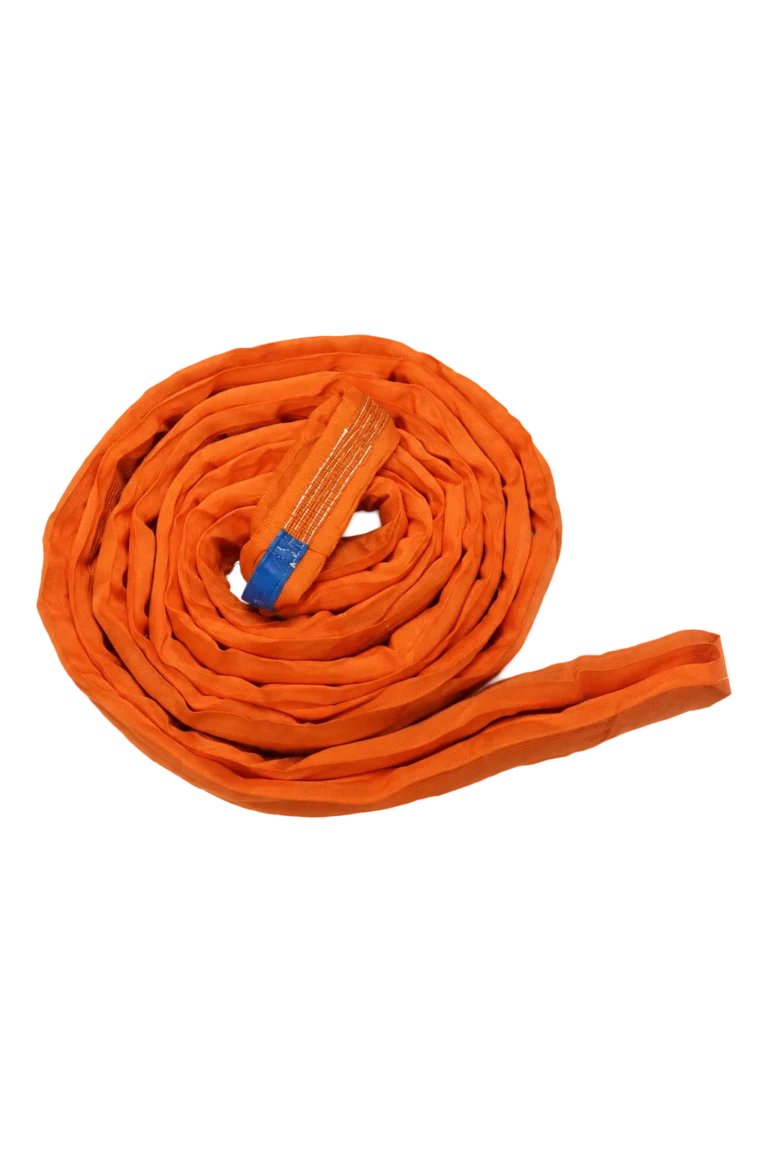

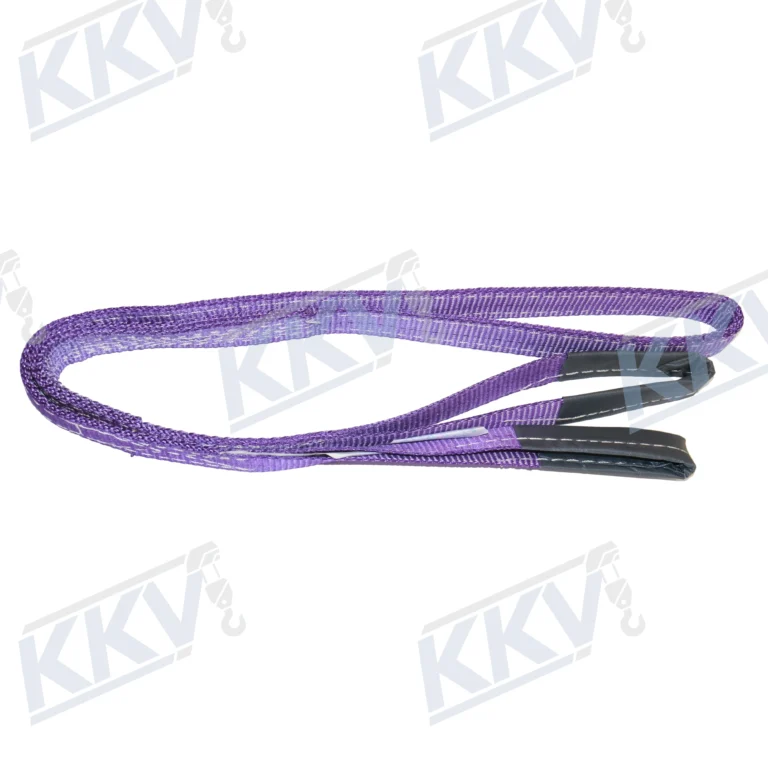

EA Soft Webbing Sling
The EA Polyester Round Sling features a continuous
load-bearing core protected by a woven polyester sleeve, providing
a flexible lifting solution for machinery, equipment and industrial
material-handling applications.
- Continuous load-bearing core without joints.
- Protective sleeve made from 100% high-tenacity polyester (PES).
- Color-coded according to DIN EN 1492-2.
- Listed Working Load Limits from 1T to 12T.
- Capacity stripes help identify rated capacity.
- Safety-factor options from 4:1 to 8:1.
- Flexible construction helps protect the surface of the lifted load.
- Operating temperature range from -40°C to 100°C.
Description
EA Polyester Round Sling for Flexible Industrial Lifting
The EA Polyester Round Sling is a flexible
synthetic lifting sling designed for industrial rigging,
machinery handling and load-positioning applications.
Its load-bearing core is manufactured from
continuous high-strength synthetic fibers without joints,
while an outer woven polyester sleeve protects the internal
load-bearing fibers during handling and lifting.
The current EA specification table covers
Working Load Limits from 1T to 12T,
with larger capacities above 12T also listed as available.
Continuous Load-Bearing Core with Protective Polyester Sleeve
Unlike a flat webbing sling, the primary load-bearing element
of the EA Round Sling is located inside the protective sleeve.
The internal core uses continuous fibers without joints,
providing the flexible round construction that defines this
type of synthetic lifting sling.
Continuous Load-Bearing Core
The internal load-bearing core is manufactured from
continuous synthetic fibers without joints.
Polyester Protective Sleeve
The outer sleeve is manufactured from
100% high-tenacity polyester (PES).
Flexible Load Contact
The soft and flexible sling construction helps
reduce unnecessary marking of the lifted load surface.
Protected Inner Fibers
The woven outer sleeve helps protect the internal
load-bearing fibers from general abrasion during use.
EA Round Sling Working Load Limits
The current EA specification series provides nominal
Working Load Limits from 1T to 12T.
Actual permitted lifting capacity depends not only on the
nominal sling WLL, but also on the
lifting method and sling angle.
Purple
Green
Yellow
Grey
Red
Brown
Blue
Orange
Round Sling Capacity Changes with Hitch and Sling Angle
Different lifting arrangements apply different capacity
factors to the nominal Working Load Limit.
Straight Lift
Listed capacity factor: 1.0.
Choked Lift
Listed capacity factor: 0.8.
Basket Lift 0°–7°
Listed capacity factor: 2.0.
Angled Lifting
Listed factors decrease as the applicable sling
angle changes.
Two-Sling Lifting
Separate capacity factors are provided for two-sling
straight and choked configurations.
Always select the applicable Working Load Limit from the
Specifications table for the actual lifting arrangement.
DIN EN 1492-2 Color Coding
EA Polyester Round Slings are color-coded according to
DIN EN 1492-2 for visual capacity
identification.
Capacity stripes are also provided, with each stripe
representing 1 ton of rated capacity.

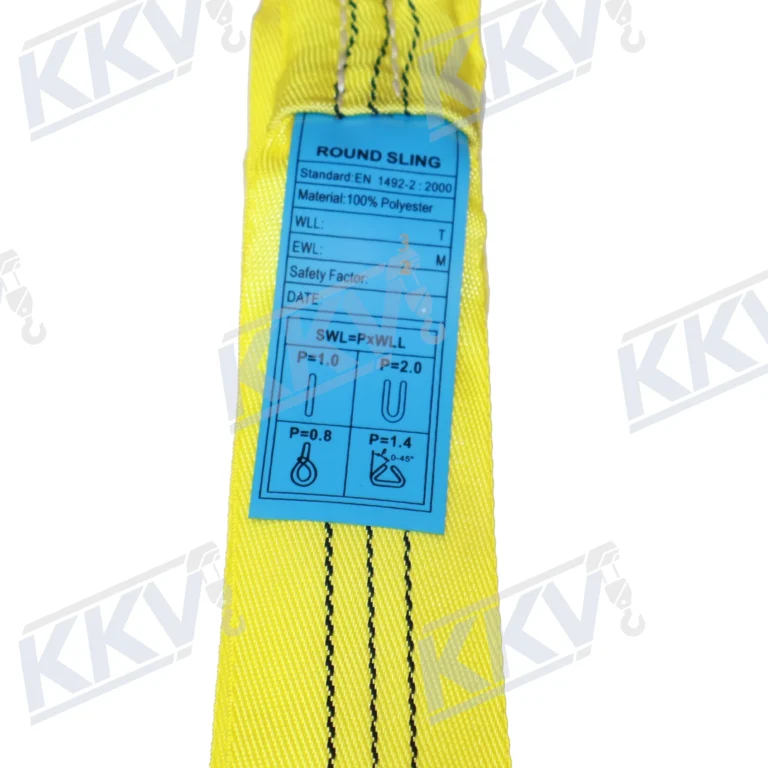

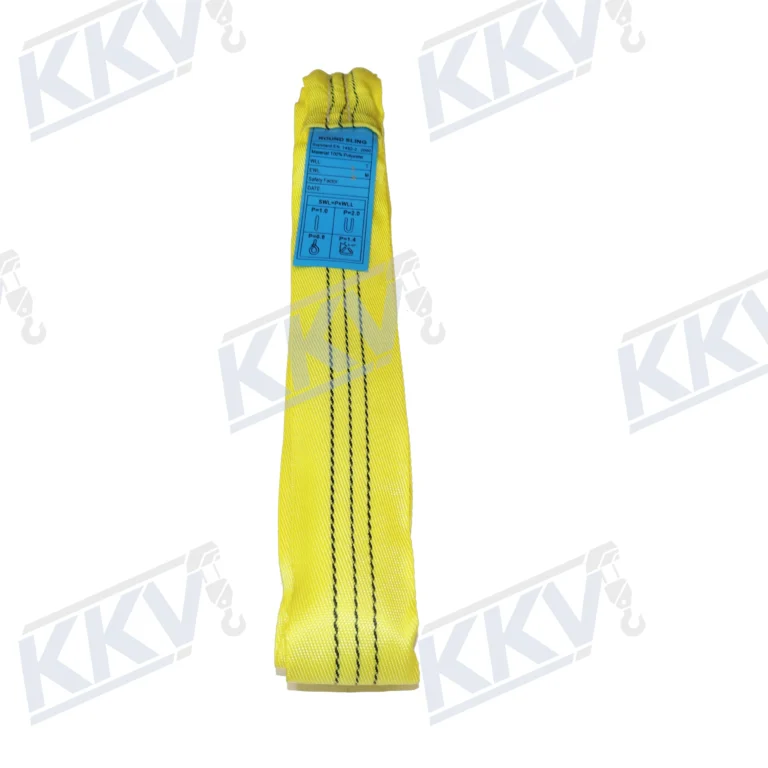

Each sling is supplied with identification showing the
rated capacity and effective length.
Safety Factors from 4:1 to 8:1
EA Round Slings are available with several safety-factor
configurations according to ordering and market requirements.
Available configuration
Available configuration
Available configuration
Available configuration
Available configuration
Confirm the required safety factor when requesting a quotation.
Flexible Sling Construction for Load Surface Protection
The flexible round sling body can conform around different
load shapes while maintaining a soft contact surface.
This makes the EA suitable for loads where hard lifting
components could create unwanted concentrated contact
or surface marking.
Sling protection should still be considered wherever
sharp or abrasive edges may damage the outer sleeve.
-40°C to 100°C Listed Operating Temperature
The listed operating temperature range for the EA Polyester
Round Sling is -40°C to 100°C.
Environmental conditions and sling condition should always
be checked before lifting.
EA Polyester Round Sling Applications
Machinery Handling
Flexible support for lifting and positioning
machinery and industrial equipment.
Fabricated Components
Suitable for lifting finished components where
flexible load contact is preferred.
Warehouse Lifting
General rigging and handling of industrial
materials and packaged loads.
Equipment Installation
Used for load lifting and positioning during
machinery installation and maintenance.
How to Select an EA Polyester Round Sling
01
Determine Load Weight
Confirm the maximum load before selecting the
nominal Working Load Limit.
02
Choose the Lifting Method
Determine whether the load will be lifted
vertically, in a choker arrangement or using
a basket configuration.
03
Check Sling Angle
Use the applicable WLL factor when the sling
operates at an angle.
04
Select Safety Factor
Specify the required 4:1, 5:1, 6:1,
7:1 or 8:1 configuration when ordering.
05
Inspect the Load Surface
Identify sharp or abrasive edges and use suitable
sling protection where required.
Inspect the Round Sling Before Each Lift
or other visible damage.
Working Load Limit before use.
sleeve may expose or compromise the internal core.
positioning the sling.
configuration and sling angle.
Need Help Selecting a Round Sling?
Compare Working Load Limit, sling angle, lifting method,
safety factor and effective length before selecting
your EA Polyester Round Sling.
Coming Soon
Additional information
| Working Load Limit | 1T–12T |
|---|---|
| Material | 100% High-Tenacity Polyester (PES) |
| Safety Factor | 4:1–8:1 |
EA Polyester Round Sling Specifications
Working Load Limit varies according to nominal sling capacity, hitch configuration and sling angle. Select the applicable capacity for the actual lifting method.
| Colour |
Colour Code DIN EN 1492-2 |
Straight Lift |
Choked Lift |
0°–7° |
Up to 7° |
7°–45° |
45°–60° |
45°–60° |
2 Slings Straight Up to 45° |
2 Slings Choked Up to 45° |
2 Slings Straight 45°–60° |
2 Slings Choked 45°–60° |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity Factor | 1 | 0.8 | 2 | 1.4 | 1 | 0.7 | 0.5 | 1.4 | 1.12 | 1 | 0.8 | |
| Purple | WLL 1T | 1000 | 800 | 2000 | 1400 | 1000 | 700 | 500 | 1400 | 1120 | 1000 | 800 |
| Green | WLL 2T | 2000 | 1600 | 4000 | 2800 | 2000 | 1400 | 1000 | 2800 | 2240 | 2000 | 1600 |
| Yellow | WLL 3T | 3000 | 2400 | 6000 | 4200 | 3000 | 2100 | 1500 | 4200 | 3360 | 3000 | 2400 |
| Grey | WLL 4T | 4000 | 3200 | 8000 | 5600 | 4000 | 2800 | 2000 | 5600 | 4480 | 4000 | 3200 |
| Red | WLL 5T | 5000 | 4000 | 10000 | 7000 | 5000 | 3500 | 2500 | 7000 | 5600 | 5000 | 4000 |
| Brown | WLL 6T | 6000 | 4800 | 12000 | 8400 | 6000 | 4200 | 3000 | 8400 | 6720 | 6000 | 4800 |
| Blue | WLL 8T | 8000 | 6400 | 16000 | 11200 | 8000 | 5600 | 4000 | 11200 | 8960 | 8000 | 6400 |
| Orange | WLL 10T | 10000 | 8000 | 20000 | 14000 | 10000 | 7000 | 5000 | 14000 | 11200 | 10000 | 8000 |
| Orange | WLL 12T | 12000 | 9600 | 24000 | 16800 | 12000 | 8400 | 6000 | 16800 | 13440 | 12000 | 9600 |
Larger capacities above 12T are also available. Contact KKV for the corresponding Working Load Limit, effective length and safety-factor requirements.
