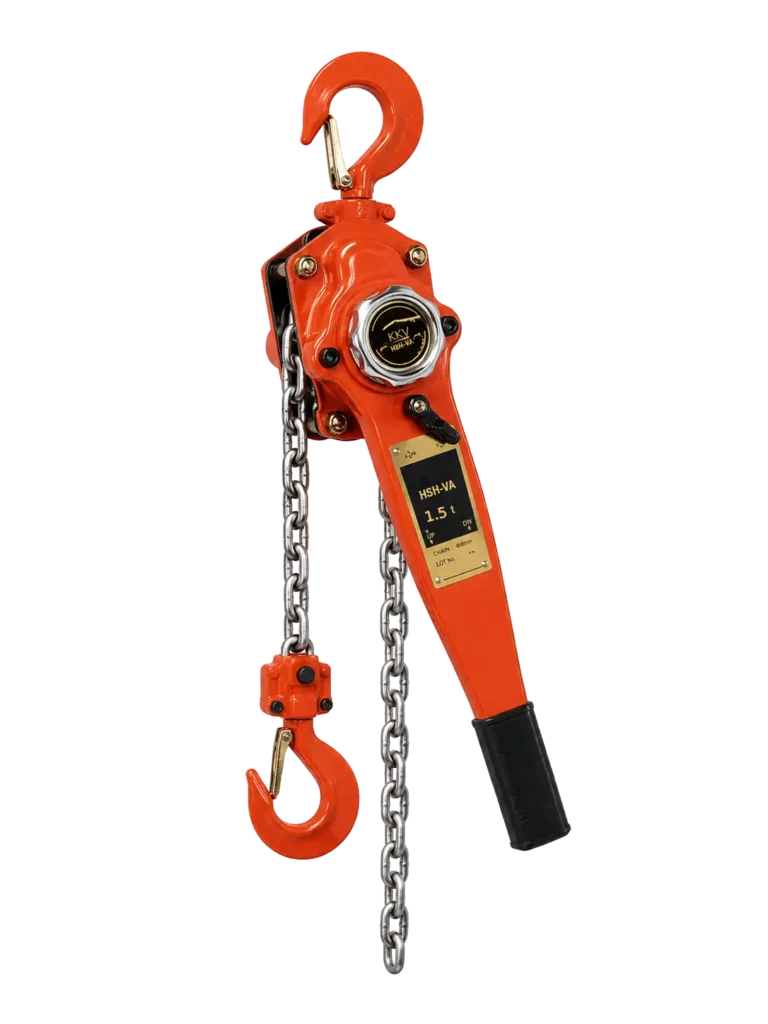

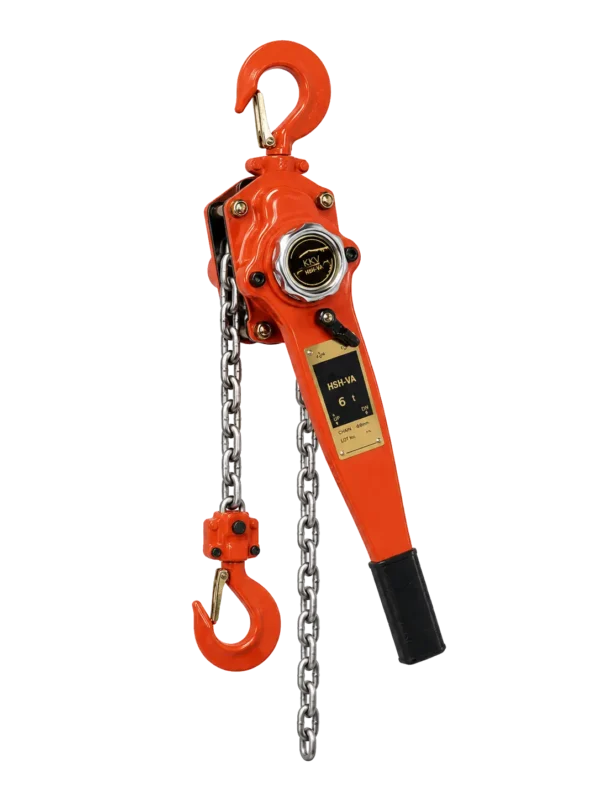

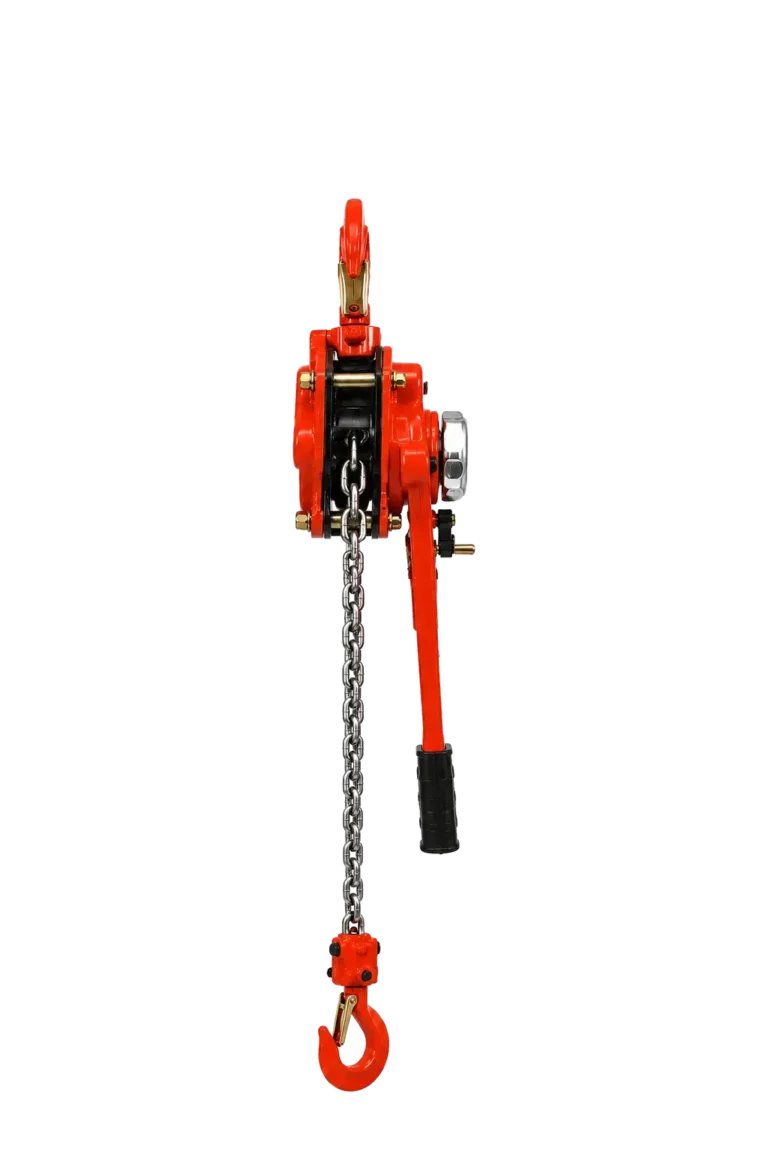

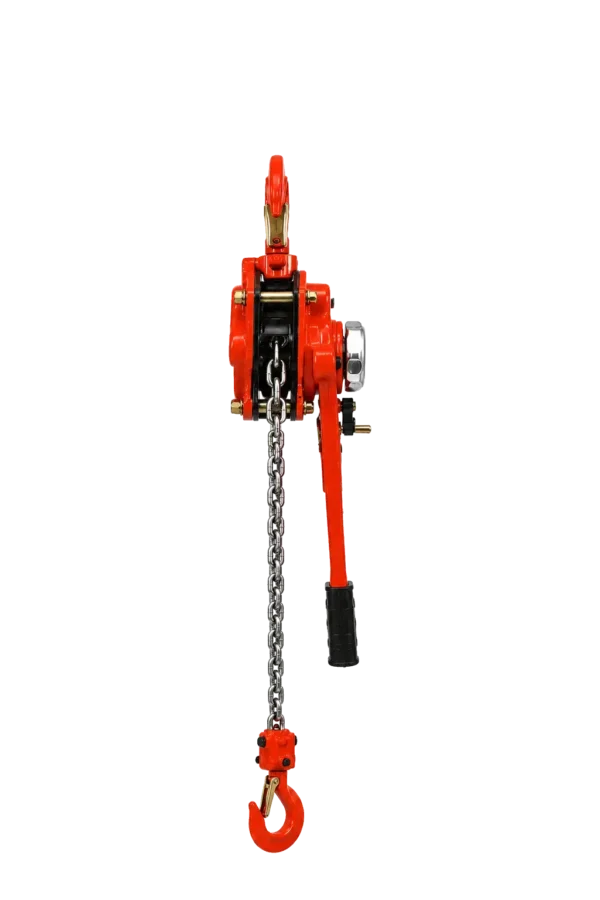

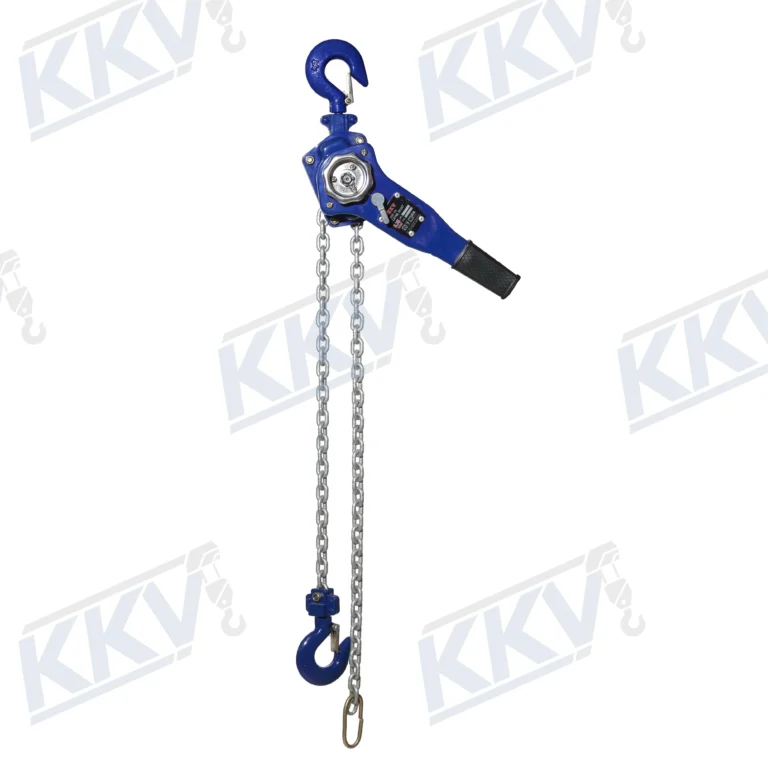

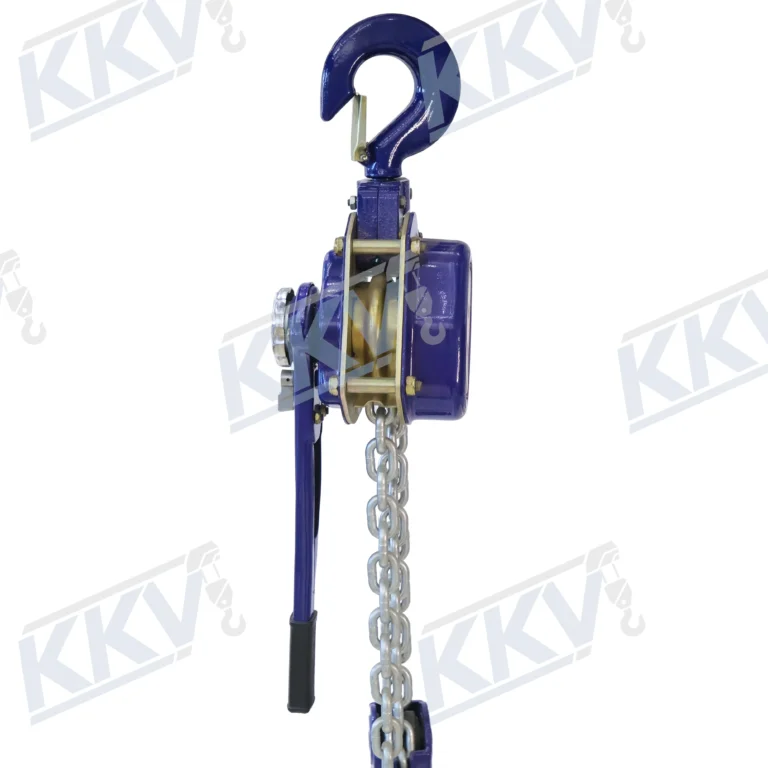

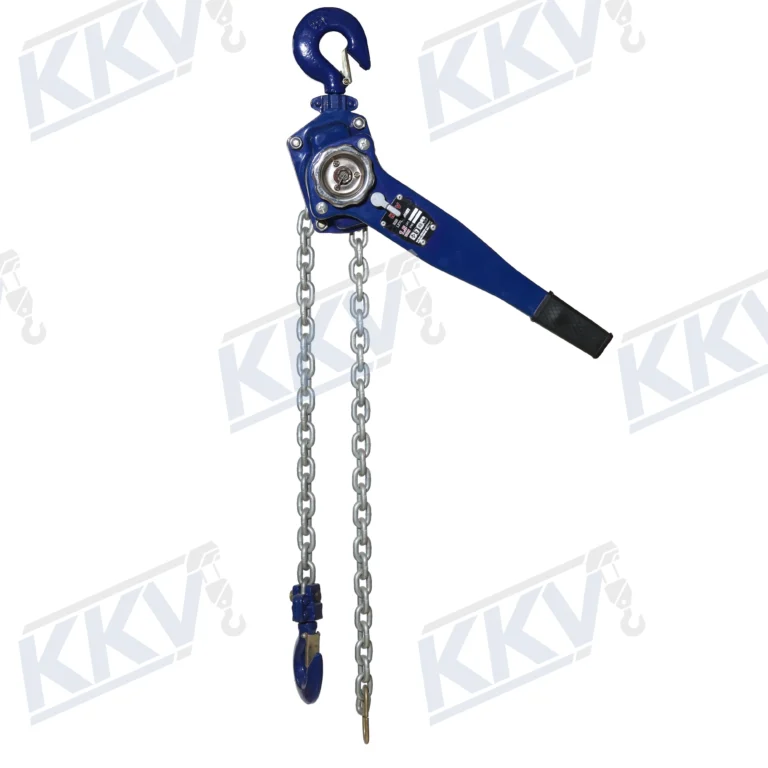

HSH-VA Heavy-Duty Lever Hoist
- Heavy-duty lever block designed for demanding industrial applications.
- Compact and robust deep-drawn stamped steel construction.
- High-quality materials provide lightweight handling without compromising reliability.
- Compact mounting dimensions and low operating force at full load.
- Short hand lever with ergonomic rubber grip.
- Premium-grade alloy load chain supplied as standard.
- Drop-forged and professionally heat-treated hooks for superior strength and long service life.
- Available capacities from 0.75 ton to 9 tons.
- Custom lifting heights are available upon request.
HSH-VA Lever Hoist for Industrial Lifting, Pulling and Positioning
The KKV Hoist HSH-VA Lever Hoist is a manually operated
chain lever hoist designed for lifting, pulling, tensioning and positioning
loads in industrial working environments. With rated capacities from
0.75 ton to 9 tons, the HSH-VA series provides a practical
manual lifting solution for workshops, factories, equipment installation,
construction, maintenance and material handling operations.
Unlike equipment that depends on an external power supply, the KKV Hoist
manual lever hoist is mechanically operated through the lever handle,
making it suitable for temporary work areas, maintenance locations,
confined spaces and applications where electrical power is unavailable
or inconvenient.
The complete HSH-VA Lever Hoist series is CE-marked,
and every unit is inspected and tested before shipment according to
KKV Hoist quality-control procedures.
Built for Multiple Material Handling Tasks
The KKV Hoist HSH-VA Chain Lever Hoist is not limited
to vertical lifting. Its lever-operated design makes it suitable for
several important types of industrial material handling work.
Lifting
Raising equipment, components and materials during installation,
assembly or maintenance.
Pulling
Moving or drawing loads where controlled manual force is required.
Tensioning
Applying controlled tension during installation, alignment
and fastening work.
Positioning
Making controlled adjustments to machinery, structural
components and loads.
Common applications:
factory equipment installation, machinery maintenance and repair,
construction and assembly, equipment positioning, load tensioning,
mechanical component pulling and industrial maintenance operations.
Free-Chaining for Faster Load Chain Adjustment
The KKV Hoist HSH-VA Lever Hoist features a
free-chaining function for faster setup before lifting.
When the hoist is not under load, the operator can quickly adjust the
position of the load chain and bottom hook without repeatedly operating
the lever handle. This helps reduce setup time when connecting the
hoist to different lifting or pulling points.
Once the required chain position has been reached, the lever mechanism
can be engaged for controlled lifting, lowering, pulling or positioning.

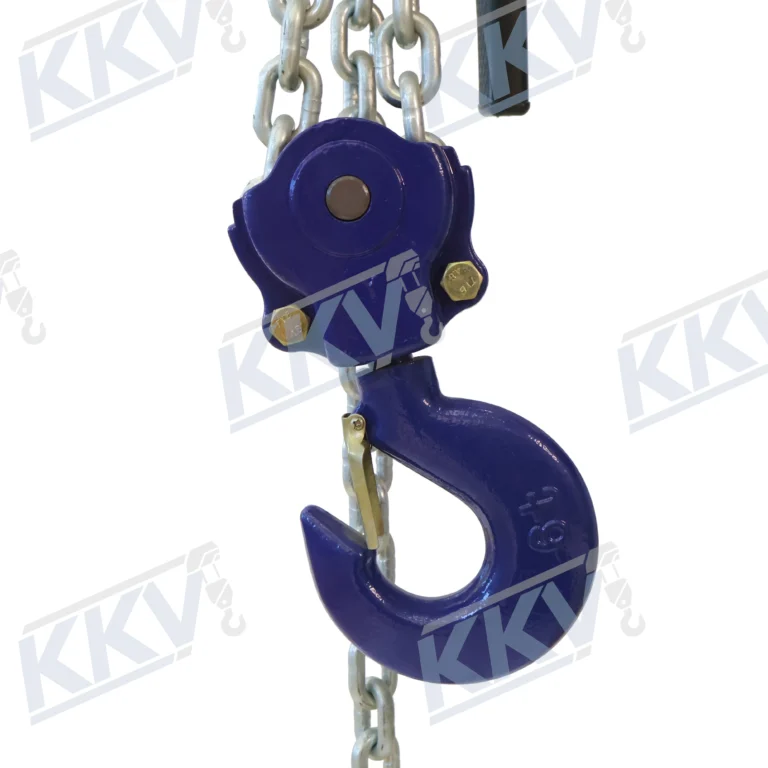

- Repositioning the bottom hook
- Preparing the hoist before lifting
- Adjusting chain length between lifting points
- Repeated maintenance operations
- Equipment installation work
How to Select the Right HSH-VA Lever Hoist
Select the appropriate model according to actual working load,
required lifting height and available working space.
01
Required Load Capacity
Choose a rated capacity suitable for the maximum load that will
be handled. Never exceed the rated capacity.
02
Required Lifting Height
The standard lifting height is 1.5 m. Longer or customized
lifting heights can be supplied.
03
Available Working Space
Check the minimum distance between hooks and available installation
space before choosing the model.
04
Operation Type & Frequency
Consider whether the hoist will mainly be used for lifting,
pulling, tensioning or positioning.
05
Project-Specific Requirements
KKV Hoist can customize lifting height, chain length, appearance,
hooks and packaging for project requirements.
Quality Control Before Shipment
KKV Hoist performs inspection and testing before every HSH-VA Lever Hoist
is released for shipment.
-
Load Testing – tested using the corresponding
test load for each model. -
Brake Inspection – braking operation is checked
before shipment. -
Chain Travel Inspection – chain movement is checked
for smooth operation and abnormal resistance. -
Hook Inspection – hooks and related components are
inspected for correct condition and assembly. -
Appearance Inspection – the finished product is
visually inspected before packing.
Custom HSH-VA Lever Hoist Options
KKV Hoist supports customized configurations for distributors,
importers, industrial buyers and project customers.
✓ Custom lifting height
✓ Customized nameplate
✓ Custom load chain length
✓ Packaging
✓ Product color
✓ Hook configuration
✓ Customer logo
✓ OEM branding
CE-Marked HSH-VA Lever Hoist Series
The complete KKV Hoist HSH-VA Lever Hoist range from
0.75T to 9T is CE-marked.
Inspection and Maintenance
Regular inspection helps maintain the operating condition and
service life of the manual lever hoist.
- Check the load chain before operation.
- Inspect hooks and safety latches.
- Check brake and lever operation.
- Check for visible damage before use.
- Do not exceed rated capacity.
- Never use the hoist for lifting people.
HSH-VA Lever Hoist Technical Specifications
| Model | HSH-VA0.75 | HSH-VA1.5 | HSH-VA3 | HSH-VA6 | HSH-VA9 |
|---|---|---|---|---|---|
| Capacity (t) | 0.75 | 1.5 | 3 | 6 | 9 |
| Standard Lift (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Test Load (t) | 1 | 2 | 4 | 7 | 10.5 |
| Min. Distance Between Hooks (mm) | 285 | 315 | 340 | 380 | 475 |
| Chain Pull to Lift Full Load (N) | 25 | 33 | 34 | 34 | 35 |
| No. of Load Chain Fall Lines | 1 | 1 | 2 | 2 | 3 |
| Diameter of Load Chain (mm) | 6 | 8 | 10 | 10 | 10 |
| Net Weight (kg) | 7 | 11 | 21 | 31 | 47 |
| Gross Weight (kg) | 8 | 12 | 22.5 | 34 | 50 |
| Packing Dimensions L × W × H (cm) | 36 × 13 × 16 | 50 × 14 × 19 | 54 × 17 × 21 | 54 × 18 × 21 | 82 × 32 × 15 |
