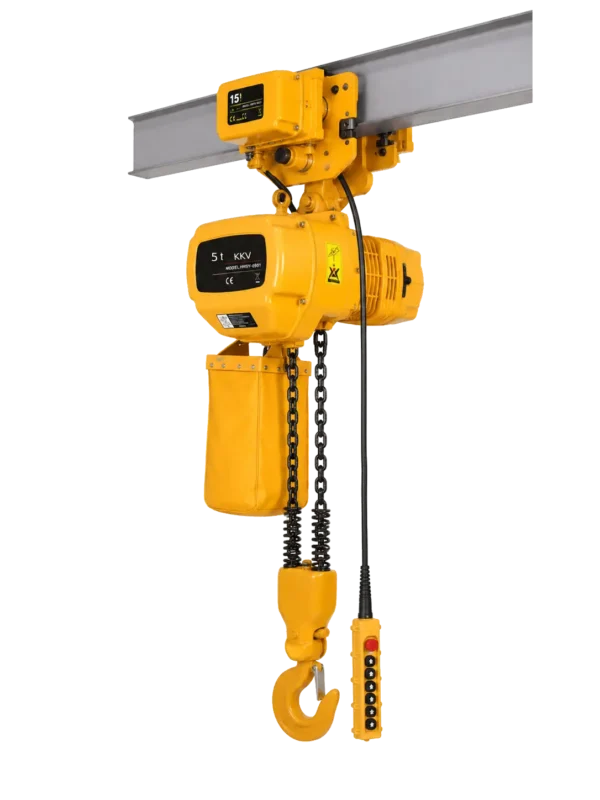

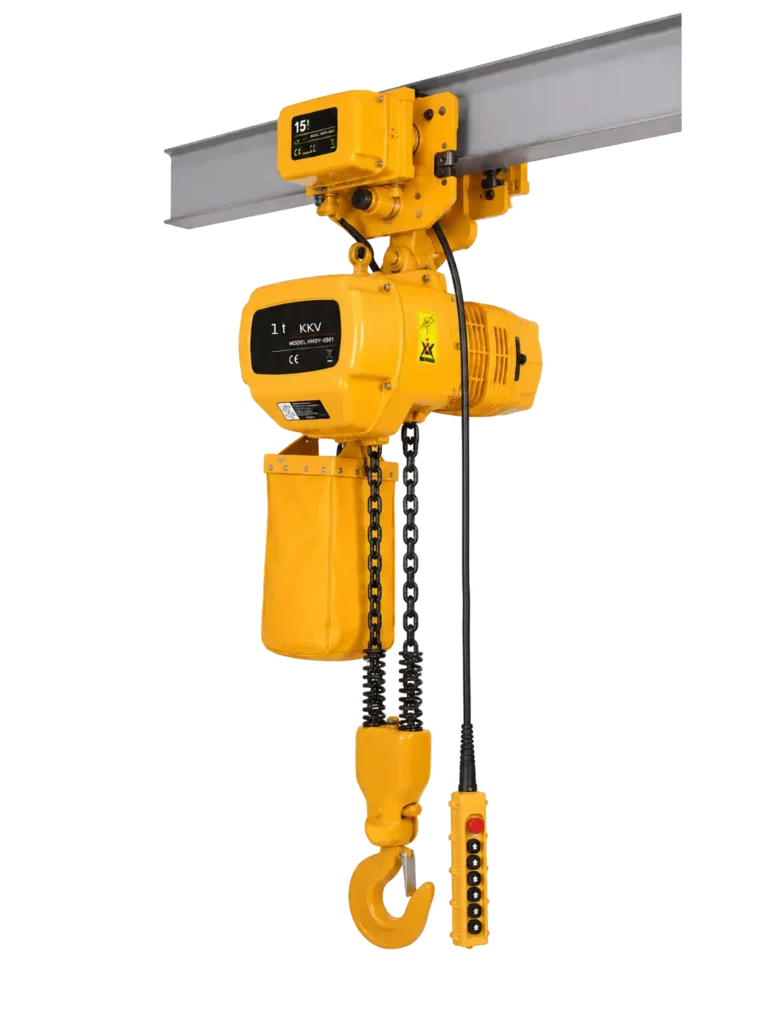

HHSY Electric Chain Hoist
The HHSY Electric Chain Hoist is an industrial electric lifting solution available in
stationary single-speed, motorized trolley single-speed and low-headroom single-speed
configurations for different lifting and material-handling requirements.
- Three configurations: stationary, motorized trolley and low headroom.
- Rated capacities from 0.5T to 5T.
- Standard lifting height of 3 m.
- Stationary type for fixed-point vertical lifting.
- Motorized trolley type for powered lifting and horizontal beam travel.
- Low-headroom type for maximizing usable lifting height in restricted spaces.
- Suitable for factories, warehouses, workshops and production lines.
Description
HHSY Electric Chain Hoist for Industrial Lifting
and Material Handling
The HHSY Electric Chain Hoist is an
electrically powered lifting solution designed for factories,
warehouses, workshops, production lines and general industrial
material-handling applications.
The HHSY series is available in
stationary single-speed,
motorized trolley single-speed and
low-headroom single-speed configurations,
allowing the lifting system to be matched to different
installation layouts and load-movement requirements.
The current listed HHSY range covers rated capacities from
0.5T to 5T, with a
standard lifting height of 3 m across
the listed models.
Three HHSY Electric Chain Hoist Configurations
Different lifting applications require different installation
arrangements. The HHSY series provides three main configurations
depending on whether the load requires only vertical lifting,
powered horizontal travel or maximum lifting height in a
restricted-headroom building.
Stationary Single Speed
Designed for vertical lifting from a fixed suspension
point where horizontal trolley movement is not required.
Motorized Trolley Single Speed
Combines powered vertical lifting with motorized
horizontal travel along a compatible beam or runway,
allowing the suspended load to be moved between
working positions.
Low Headroom Single Speed
Uses a compact travelling arrangement designed to
reduce the vertical space occupied by the hoist and
maximize available hook lifting height.
Stationary Electric Chain Hoist for Fixed-Point Lifting
The stationary HHSY configuration is intended for applications
where the lifting point remains fixed and only vertical
load movement is required.
This configuration is suitable for assembly stations,
maintenance areas, equipment installation and fixed lifting
positions where horizontal beam travel is unnecessary.
Fixed Suspension
Designed for vertical lifting from a defined
suspension point.
Simple Installation Layout
Suitable where a travelling trolley system is not
required by the application.
Electric Chain Hoist with Powered Horizontal Travel
The motorized trolley configuration combines electric
vertical lifting with powered horizontal movement along
a compatible beam.
This allows one hoist to lift a load and then move it
between different working positions, making the configuration
suitable for production lines, workshops, warehouses and
general material-transfer operations.
Electric Lifting
Powered vertical lifting reduces the manual effort
required for repeated material-handling operations.
Powered Trolley Travel
Horizontal travel allows the suspended load to move
along a compatible runway or beam.
Low Headroom Electric Chain Hoist for Limited Vertical Space
The low-headroom HHSY configuration is designed for buildings
where available vertical clearance between the runway beam
and the floor is limited.
By reducing the vertical space occupied by the hoist
installation, the load hook can operate closer to the
supporting structure, helping increase the effective
lifting height available to the operator.
Reduced Installation Height
Compact arrangement helps reduce the vertical
space occupied by the hoist system.
More Effective Hook Height
Particularly useful in low-ceiling factories,
workshops and existing industrial buildings.
HHSY Electric Chain Hoists from 0.5T to 5T
The current HHSY specification series includes multiple
rated capacities and chain configurations for different
industrial lifting requirements.
0.5T
Suitable for lighter industrial material-handling
and equipment-lifting applications.
1T
Available in different HHSY configurations according
to installation and load-chain arrangement.
2T
Multiple model configurations provide options for
different lifting-system layouts.
3T & 5T
Higher-capacity HHSY configurations are available
for heavier industrial lifting requirements.
Load Chain Configuration Matched to Rated Capacity
Load-chain diameter and the number of chain falls vary
according to HHSY model and rated capacity.
Single Chain Fall
HHSY-0.5A, HHSY-1.0A and HHSY-2.0A use
single load-chain fall configurations.
Double Chain Fall
HHSY-1.0B, HHSY-2.0B, HHSY-3.0B and
HHSY-5.0B use two load-chain falls.
6.3–11.2 mm Chain Range
Load-chain diameter varies from 6.3 mm to
11.2 mm depending on model configuration.
Motor and Lifting Speed Matched to the Hoist Configuration
Each HHSY model uses a motor and lifting-speed configuration
matched to its rated capacity and load-chain arrangement.
Listed motor power ranges from
1.1 kW to 3.0 kW, while listed lifting
speeds range from 2.8 m/min to 7.8 m/min.
Motor Power
Motor output is selected according to lifting
capacity and mechanical configuration.
Lifting Speed
Lifting speed varies across the HHSY range to
match capacity and chain-fall configuration.
Single-Speed Operation
The three primary configurations on this product
page are designed around straightforward
single-speed electric lifting.
HHSY Electric Chain Hoist Applications
Factories & Production Lines
Lifting and transferring machinery, components,
tooling and materials during production operations.
Warehouses
Electric lifting and load positioning for general
warehouse material-handling requirements.
Workshops
Equipment installation, assembly and maintenance
work requiring powered vertical lifting.
Low-Ceiling Buildings
Low-headroom configuration helps maximize usable
lifting height where vertical installation space
is restricted.
Which HHSY Electric Chain Hoist Configuration Do You Need?
01
Need Vertical Lifting Only?
Choose the stationary single-speed configuration
when the lifting position remains fixed and
horizontal movement is unnecessary.
02
Need Horizontal Load Travel?
Choose the motorized trolley configuration when
the suspended load must move along a runway
between multiple working positions.
03
Limited Building Height?
Choose the low-headroom configuration when
maximizing effective hook height is more important
than using a conventional trolley arrangement.
How to Select the Right HHSY Electric Chain Hoist
01
Rated Capacity
Select a hoist capacity that covers the maximum
intended working load. Current listed capacities
range from 0.5T to 5T.
02
Installation Configuration
Determine whether the application requires a
stationary, motorized trolley or low-headroom
configuration.
03
Available Headroom
Check available vertical clearance before selecting
a standard travelling or low-headroom arrangement.
04
Lifting Speed
Compare the lifting speed of each model according
to the required operating cycle and load capacity.
05
Load Chain Configuration
Check chain diameter and number of chain falls
for the selected model in the Specifications tab.
HHSY Electric Chain Hoist Model Range
0.5T / Standard lift 3 m
1T / Standard lift 3 m
2T / Standard lift 3 m
1T / Standard lift 3 m
2T / Standard lift 3 m
3T / Standard lift 3 m
5T / Standard lift 3 m
Routine Checks for Reliable Electric Hoist Operation
corrosion or other visible damage before operation.
for abnormal wear or damage.
before applying the intended working load.
and beam travel before normal lifting operations.
for visible damage before operation.
model and never use the hoist for lifting personnel.
Need Help Choosing the Right Configuration?
Compare stationary, motorized trolley and low-headroom
configurations together with rated capacity, motor power,
load-chain arrangement, lifting speed and product weight.
Coming Soon
Additional information
| Rated Capacity | 0.5~5T |
|---|---|
| Test Load | 6.25~62.5T |
| Net Weight | 42~133KG |
HHSY Low-Headroom Electric Chain Hoist Specifications
Compare rated capacity, standard lift, test load, motor power, load-chain configuration, lifting speed, product weight and additional lift weight across the HHSY series.
| Model | HHSY-0.5A | HHSY-1.0A | HHSY-2.0A | HHSY-1.0B | HHSY-2.0B | HHSY-3.0B | HHSY-5.0B |
|---|---|---|---|---|---|---|---|
| Rated Capacity (t) | 0.5 | 1.0 | 2.0 | 1.0 | 2.0 | 3.0 | 5.0 |
| Standard Lift (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Test Load (kN) | 6.25 | 12.5 | 25 | 12.5 | 25 | 37.5 | 62.5 |
| Motor Power (kW) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 3.0 | 3.0 |
| Number of Load Chain Falls | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Load Chain Diameter (mm) | 6.3 | 7.1 | 10 | 6.3 | 7.1 | 10 | 11.2 |
| Lifting Speed (m/min) | 7.8 | 6.8 | 6.8 | 3.9 | 3.4 | 5.8 | 2.8 |
| Net Weight (kg) | 42 | 59 | 110 | 47 | 69 | 123 | 133 |
| Extra Weight per Meter of Additional Lift (kg) | 0.5 | 1.1 | 2.2 | 1.0 | 2.2 | 4.4 | 5.8 |
