GCL-A Geared Trolley
The GCL-A Geared Trolley is a manual hand-chain trolley designed for controlled horizontal movement of hoists and loads along I-beams.
- Manual hand-chain operation for controlled trolley travel.
- Suitable for use with chain hoists and other lifting equipment.
- Adjustable design for different I-beam flange widths.
- Suitable for workshops, factories and industrial lifting systems.
Description
GCL-A Geared Trolley for Controlled I-Beam Travel
The GCL-A Geared Trolley uses a
hand-chain driven gear mechanism to provide controlled
horizontal movement of hoists and suspended loads along
compatible I-beams.
Compared with a plain push trolley, the geared travel
mechanism allows the operator to move and position the
suspended load by pulling the operating hand chain,
making the GCL-A suitable for applications where more
controlled horizontal positioning is required.
Available in capacities from 0.5T to 20T,
the trolley combines adjustable beam spacing, a geared
transmission system, rolling wheels and a reinforced
central suspension connection.
Hand-Chain Geared Travel for Controlled Load Positioning
Geared Hand-Chain Travel
Horizontal trolley movement is controlled through
the operating hand chain and geared transmission.
Chain Guide System
The chain guide arrangement helps maintain
consistent engagement between the operating
chain and drive wheel.
Geared Transmission
The mechanical gear system transfers hand-chain
input into controlled wheel movement along the beam.
Adjustable Beam Fit
Spacer adjustment allows the trolley width
to be configured for different compatible
I-beam flange dimensions.
Reinforced Suspension Eye
The central suspension point provides a strong
connection location for compatible hoists.
Steel Trolley Structure
Structural steel side plates support the wheel,
axle, transmission and suspension assemblies.
Key GCL-A Geared Trolley Construction Details
The GCL-A combines chain-driven travel, mechanical gearing,
adjustable beam spacing and a central suspension connection
in one compact trolley system.

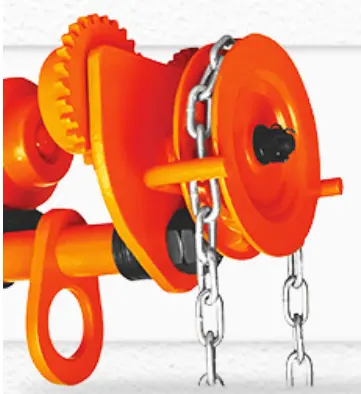

Precision Chain Guide
The chain guide helps maintain smooth engagement
of the operating hand chain with the drive wheel
during trolley movement.
Geared Drive System
The mechanical gear arrangement transfers
hand-chain movement to the trolley wheels for
controlled horizontal positioning.

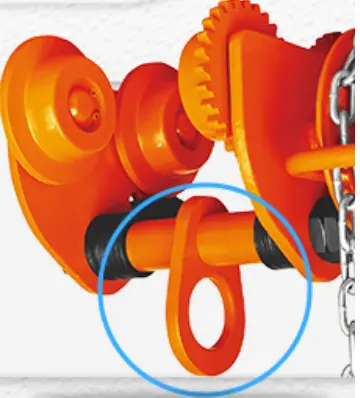

Reinforced Suspension Eye
The thickened central suspension structure
provides a dedicated connection point between
the trolley and compatible lifting equipment.
Adjustable Spacer System
Spacer washers allow the distance between
the trolley side assemblies to be adjusted
for the required beam flange width.
Controlled Horizontal Travel by Operating Hand Chain
Unlike a plain trolley that is moved by directly pushing
the suspended load, the GCL-A uses an
operating hand chain and geared drive
to control horizontal travel.
Pulling the hand chain rotates the drive mechanism,
which transfers motion through the gear system to
move the trolley wheels along the beam.
Hand-Chain Control
The operator controls trolley movement from
the operating hand chain.
Mechanical Gear Drive
Gear transmission converts chain movement
into controlled trolley wheel rotation.
Controlled Positioning
Suitable where more deliberate horizontal
positioning is preferred over direct pushing.
No Electric Travel Motor
Geared travel operates mechanically without
requiring an electric trolley drive.
Adjust the GCL-A to the Actual I-Beam Width
Correct trolley adjustment is important for stable wheel
travel and proper gear operation. Confirm the actual beam
flange width before installing the trolley.
Measure the Beam
Confirm the actual I-beam flange width
before trolley installation.
Adjust the Spacers
Arrange the spacer washers according
to the required trolley width.
Center the Suspension
Keep the suspension point centered relative
to the trolley wheel assemblies.
Check Travel
Operate the hand chain and confirm smooth
wheel and gear movement before applying load.
When to Choose a Geared Trolley
A geared trolley is useful when operators require
greater control over horizontal travel than a manually
pushed plain trolley can provide.
Controlled Movement
Hand-chain operation provides controlled
movement along the beam.
Load Positioning
Suitable for applications where the suspended
load must be positioned more deliberately.
Manual Power
Mechanical travel does not require an
electric trolley motor.
Industrial Use
Suitable for workshop, maintenance,
installation and material-handling systems.
GCL-A Geared Trolley Applications
Industrial Workshops
Controlled horizontal travel of hoists and
suspended loads along workshop beams.
Machinery Installation
Useful for controlled positioning of equipment
during installation and assembly.
Maintenance & Repair
Suitable for maintenance lifting where operators
require controlled beam travel.
Warehouse Handling
Horizontal positioning of suspended loads
along compatible fixed I-beam systems.
How to Select a GCL-A Geared Trolley
01
Confirm Required Capacity
Select a trolley with sufficient rated
capacity for the maximum suspended load.
02
Measure I-Beam Width
Confirm that the beam flange width falls
within the available trolley adjustment range.
03
Check Turning Radius
For curved beam systems, compare the required
radius with the listed minimum turning radius.
04
Confirm Hand-Chain Access
Ensure that the operating chain can be
accessed safely from the intended operating position.
05
Match the Hoist
Confirm compatibility between the trolley,
hoist and complete suspension system.
Inspect the GCL-A Before Operation
smooth engagement with the chain guide.
wear, damage or restricted movement.
suspension structure for visible deformation.
components remain correctly installed.
smooth hand-chain and wheel movement.
damage, abnormal gear wear or insecure components
are identified.
Need Help Selecting the Right Geared Trolley?
Compare rated capacity, I-beam width, minimum turning
radius, trolley dimensions and required travel method
before selecting your GCL-A Geared Trolley.
Coming Soon
Additional information
| Rated Capacity | 0.5–20T |
|---|---|
| I-Beam Width | 68–203mm |
| Min. Turning Radius | 0.9–5.0m |
GCL-A Geared Trolley Technical Specifications
Compare rated capacity, compatible I-beam width, minimum turning radius, net weight and trolley dimensions before selecting the appropriate GCL-A Geared Trolley.
| Capacity |
I-Beam Width (mm) |
Minimum Turning Radius |
Net Weight (kg) |
A (mm) |
B (mm) |
C (mm) |
H (mm) |
|---|---|---|---|---|---|---|---|
| 0.5T | 68–94 | 0.9 m | 5.3 | 189 | 170 | 183 | 112 |
| 1T | 68–100 | 1.0 m | 7.5 | 208 | 193 | 215 | 143 |
| 2T | 94–124 | 1.1 m | 11.2 | 250 | 235 | 260 | 175 |
| 3T | 116–140 | 1.3 m | 21 | 288 | 280 | 308 | 215 |
| 5T | 140–180 | 1.4 m | 30.5 | 355 | 335 | 382 | 250 |
| 10T | 125–180 | 1.7 m | 90 | 362 | 395 | 510 | 295 |
| 20T | 136–203 | 5.0 m | 235 | 475 | 642 | 622 | 315 |
Selection Note: Confirm trolley capacity, I-beam flange width, required turning radius and installation dimensions before ordering. Actual beam dimensions and operating conditions should always be verified before installation.
