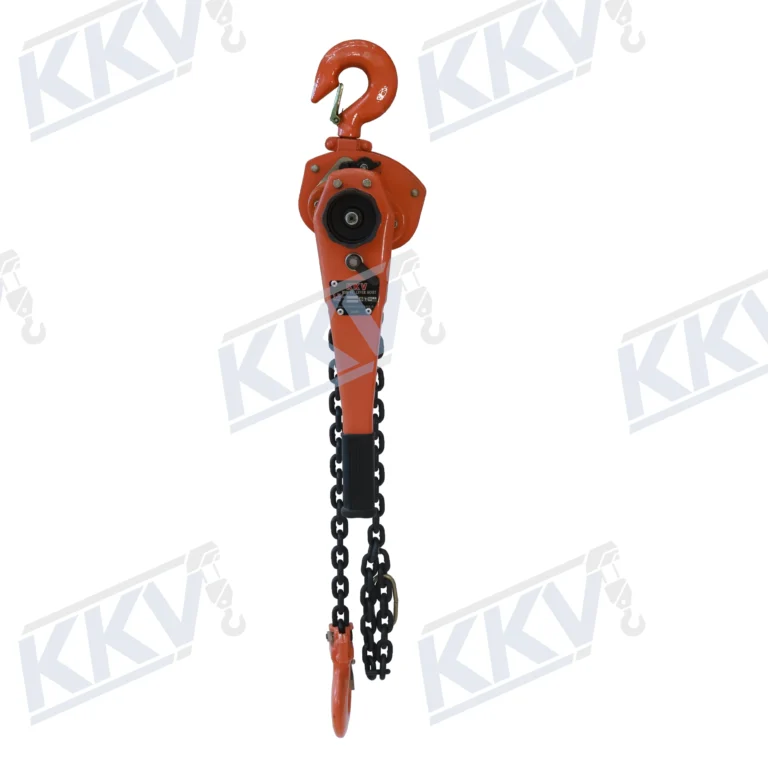

HSH-VL Lever Hoist
The HSH-VL is a compact chain lever hoist with listed capacities from 0.8 to 9 metric tonnes. Confirm the required capacity, lift and operating arrangement with KKV.
- Compact and robust design with deep-drawn, stamped steel construction.
- High-quality materials provide a lightweight structure without compromising reliability.
- Low weight, compact mounting dimensions, and low lever force at full load.
- Optimized gear ratio ensures smooth operation with minimal hand effort.
- Premium-grade alloy load chain supplied as standard.
- Drop-forged and professionally heat-treated hooks provide excellent strength and long service life.
- Available capacities range from 0.8 ton to 9 tons.
- Different lifting heights are available upon request.
Description

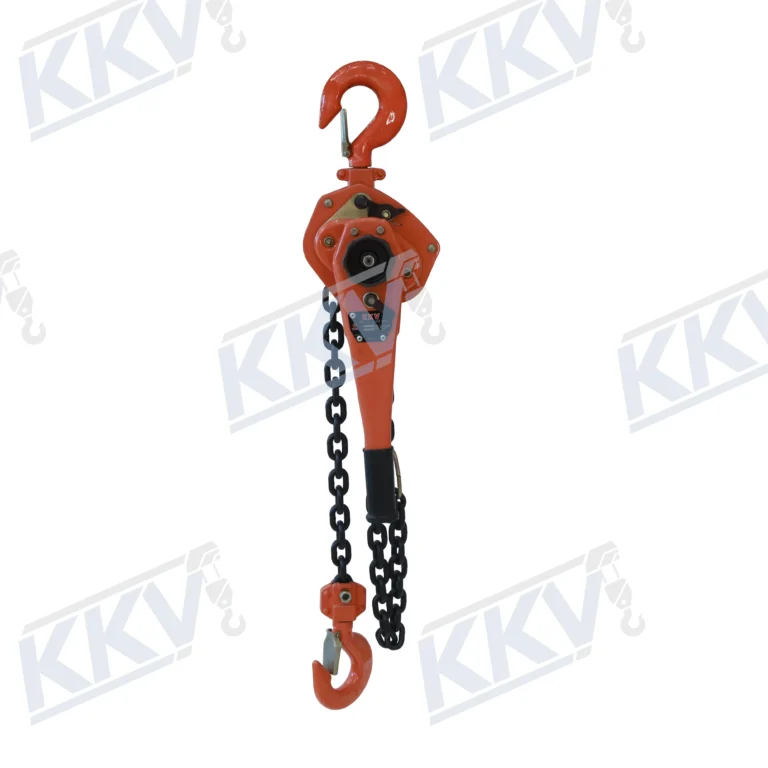

HSH-VL Lever Hoist
The HSH-VL Lever Hoist is a compact manual lifting,
pulling, tensioning and load-positioning solution designed for
industrial maintenance, equipment installation, construction and
general material handling.
Available from 0.8T to 9T, the HSH-VL combines a
compact steel body with a G80 alloy steel load chain,
double-pawl braking system,
free-chaining function and
360° rotating hooks.
The standard lifting height is 1.5 m, with
customized lifting heights available for different applications.
Built for Reliable Manual Load Control

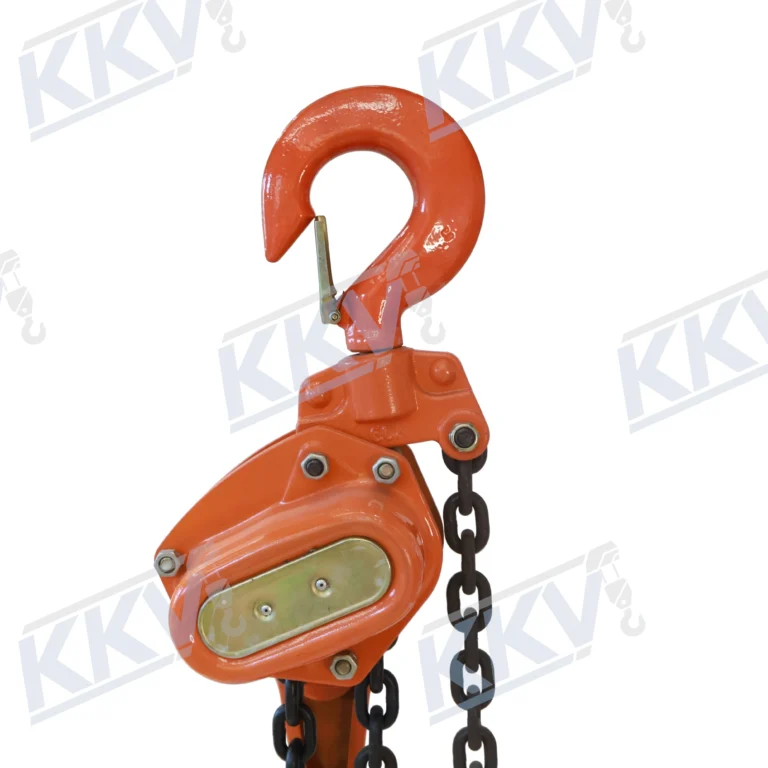

Compact Steel Construction
The compact body helps reduce overall installation space
and makes the HSH-VL suitable for lifting and positioning
work where available working space is limited.

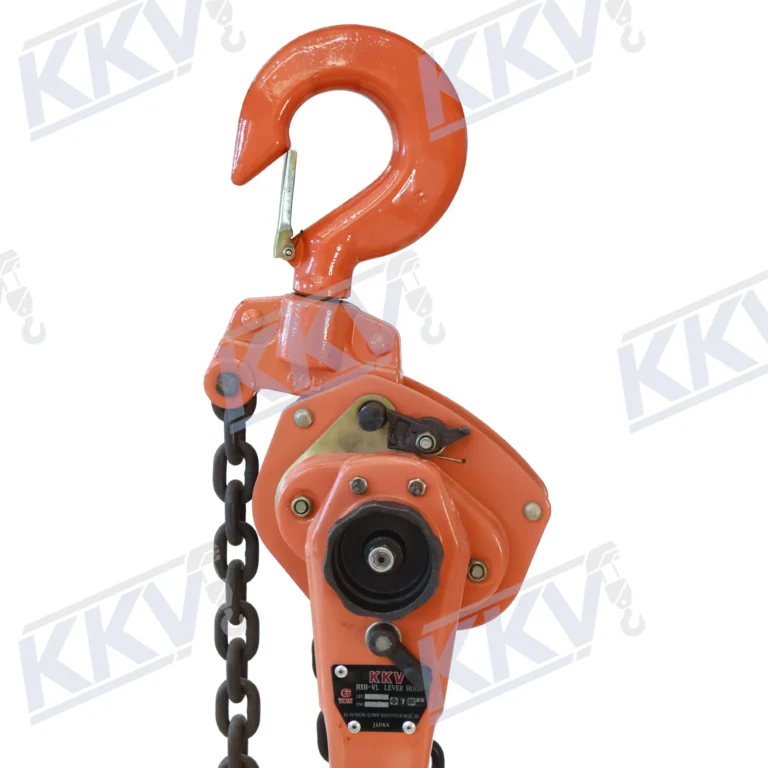

Double-Pawl Brake
A double-pawl braking system provides dependable load
holding and controlled operation during lifting and
lowering.

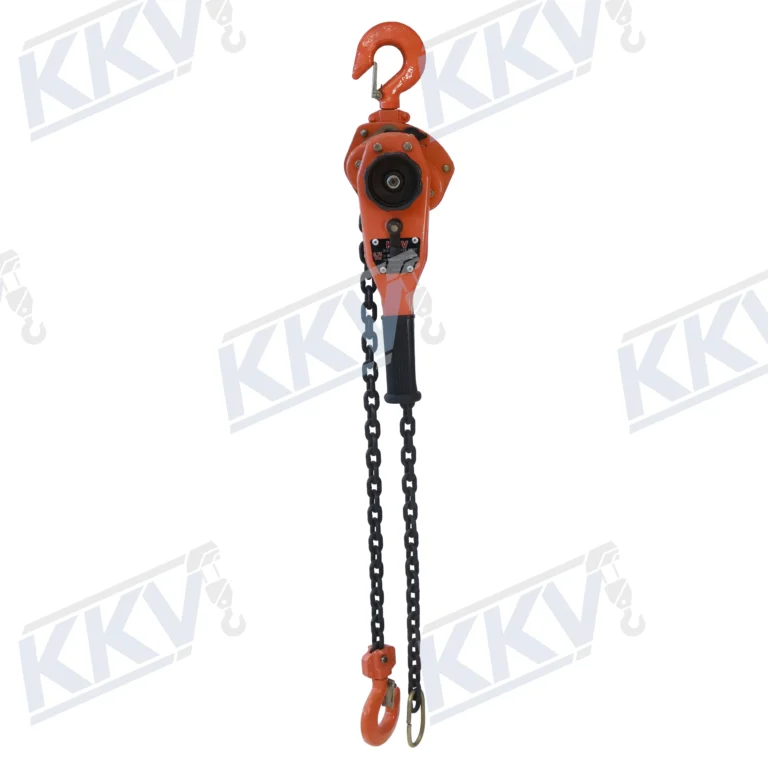

G80 Alloy Steel Load Chain
The HSH-VL uses a G80 alloy steel load chain selected for
industrial lifting applications requiring strength and
durability.
Free-Chaining Function
When unloaded, the free-chaining mechanism allows the hook
position and chain length to be adjusted quickly before
lifting begins.

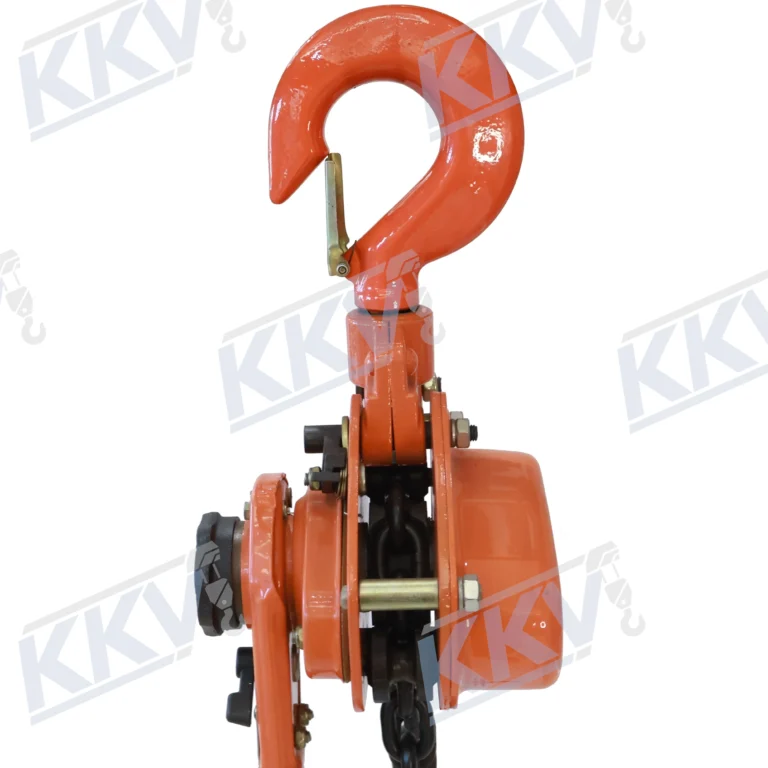

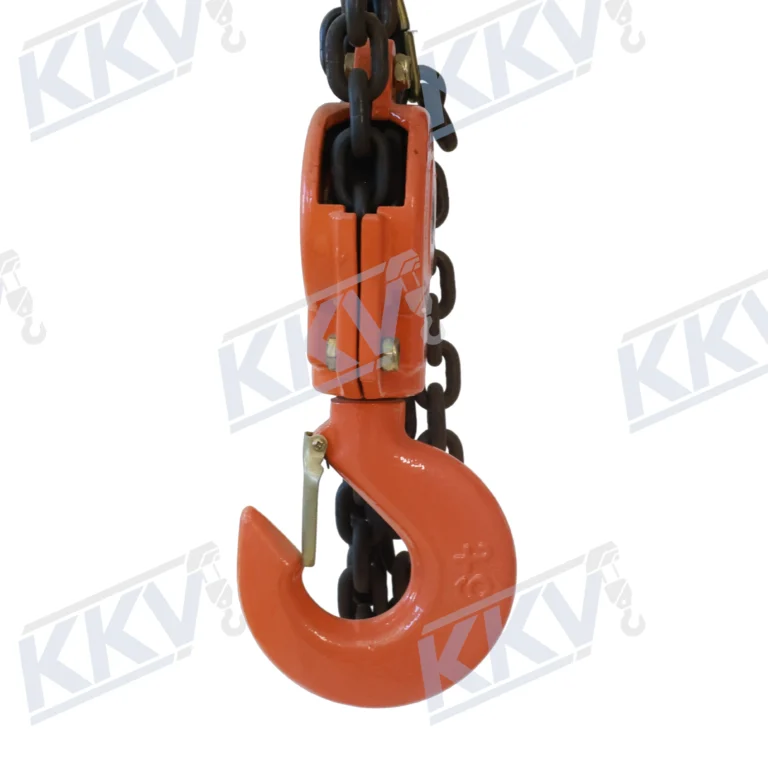

360° Rotating Hooks
The rotating upper and lower hooks make attachment and
positioning easier when working with loads in different
orientations.
0.8T–9T Capacity Range
Multiple capacity options allow the HSH-VL series to cover
general maintenance work through heavier industrial
lifting and positioning requirements.

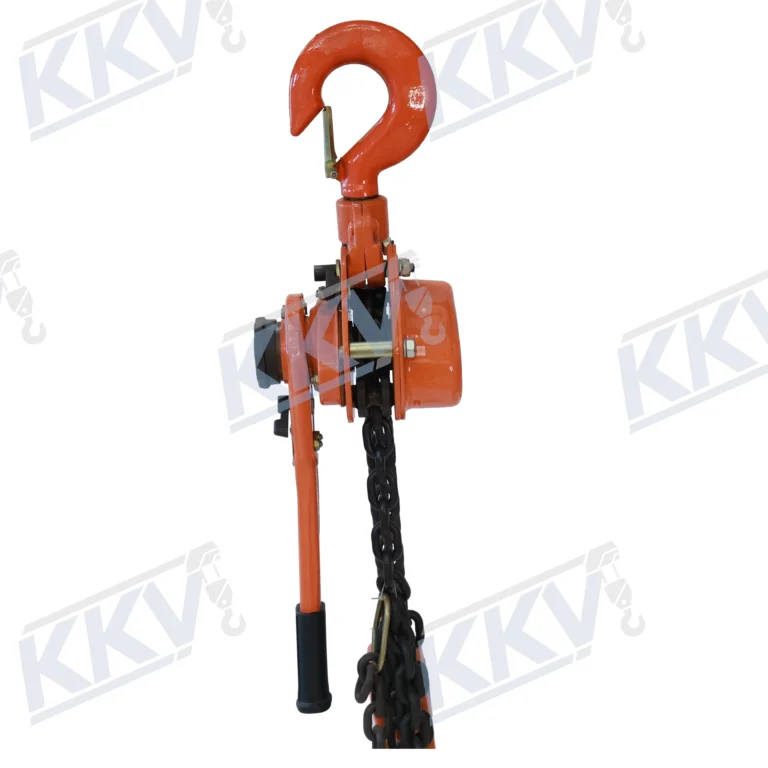

Compact Structure for Industrial Applications
The HSH-VL combines the load chain, brake, gearing, lever mechanism
and hook system within a compact mechanical structure designed for
practical manual operation.
Designed for Lifting, Pulling and Positioning
The HSH-VL can be used for a wide range of manual material-handling
tasks where controlled movement of a load is required.
Controlled vertical lifting of equipment and components.
Manual pulling and alignment during installation work.
Suitable for controlled tensioning and adjustment tasks.
Accurate positioning of machinery and industrial loads.
How to Select the Right HSH-VL Lever Hoist
Required Load Capacity
Choose a rated capacity that covers the maximum intended
working load. HSH-VL models are available from
0.8T to 9T.
Required Lifting Height
Standard lift is 1.5 m. Other lifting
heights can be supplied according to project
requirements.
Available Working Space
Check the minimum hook distance and surrounding
operating space before selecting the final model.
Operation Type & Frequency
Consider whether the hoist will be used for occasional
maintenance, regular workshop lifting, positioning,
pulling or tensioning.
Project-Specific Requirements
For customized chain lengths, lifting heights, branding
or packaging, provide the required configuration before
production.
Inspection Before Shipment
HSH-VL Lever Hoists are inspected before shipment to verify key
operating and load-bearing components.
Load Testing
Brake Inspection
Load Chain Travel
Hook Inspection
Lever Operation
Final Functional Check
CE-Certified HSH-VL Series
The HSH-VL Lever Hoist series is supplied with
CE certification, supporting its use in
professional lifting applications.
Configurations for Different Markets and Projects
HSH-VL Lever Hoists can be supplied with customized configurations
according to distributor, OEM and project requirements.
HSH-VL Lever Hoist Ordering Questions
Is HSH-VL the same as HS-VL?
No. The HSH-VL uses a lever handle, while HS-VL is a separate hand-chain-operated series. Include the complete model name and load mass in kilograms to avoid confusion.
What information is needed for a quotation?
Provide the HSH-VL capacity, required lift, intended task, available working space, quantity and destination. Include any nonstandard chain length, branding or packaging requirements for review.
Inspection and Maintenance
Regular inspection helps maintain reliable operation throughout
the service life of the hoist.
Check for wear, deformation, corrosion or damage.
Inspect hooks and related components before operation.
Verify smooth and reliable brake operation.
Check for smooth movement and abnormal resistance.
Need Technical Information?
View detailed model specifications or download the HSH-VL
product datasheet when available.
Additional information
| Rated Capacity | 0.8~9T |
|---|---|
| Test Load | 1.5 × Rated Capacity |
| Net Weight | 8.4~77KG |
HSH-VL Lever Hoist Specifications
Compare HSH-VL models from 0.8T to 9T, including capacity, standard lift, test load, hook distance, load chain configuration, weight and packing dimensions.

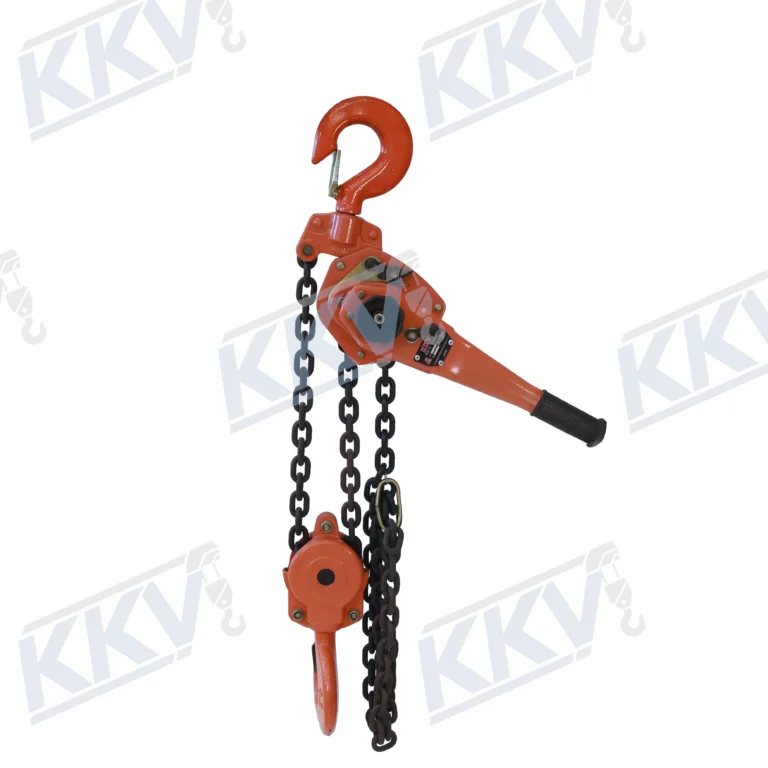

| Model | VL0.8 | VL1 | VL1.6 | VL2 | VL3.2 | VL6.3 | VL9 |
|---|---|---|---|---|---|---|---|
| Capacity (t) | 0.8 | 1 | 1.6 | 2 | 3.2 | 6.3 | 9 |
| Standard Lift (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Test Load (t) | 1 | 1.8 | 2 | 3 | 4.5 | 7.5 | 12 |
| Min. Distance Between Hooks (mm) | 285 | 315 | 340 | 380 | 475 | 600 | 700 |
| Lever Pull to Lift Full Load (N) | 25 | 33 | 34 | 34 | 35 | 39 | 41 |
| No. of Load Chain Fall Lines | 1 | 1 | 1 | 1 | 2 | 2 | 3 |
| Diameter of Load Chain (mm) | 6 | 6 | 7.1 | 8 | 9 | 9 | 9 |
| Net Weight (kg) | 7 | 7 | 11 | 15.5 | 20 | 28 | 47 |
| Gross Weight (kg) | 9.4 | 9.4 | 14.5 | 17 | 23 | 32 | 50 |
| Packing Dimensions L × W × H (cm) | 33 × 16 × 13 | 33 × 16 × 13 | 43 × 18 × 16 | 44 × 19 × 17 | 50 × 20 × 18 | 53 × 21 × 21 | 82 × 32 × 15 |
