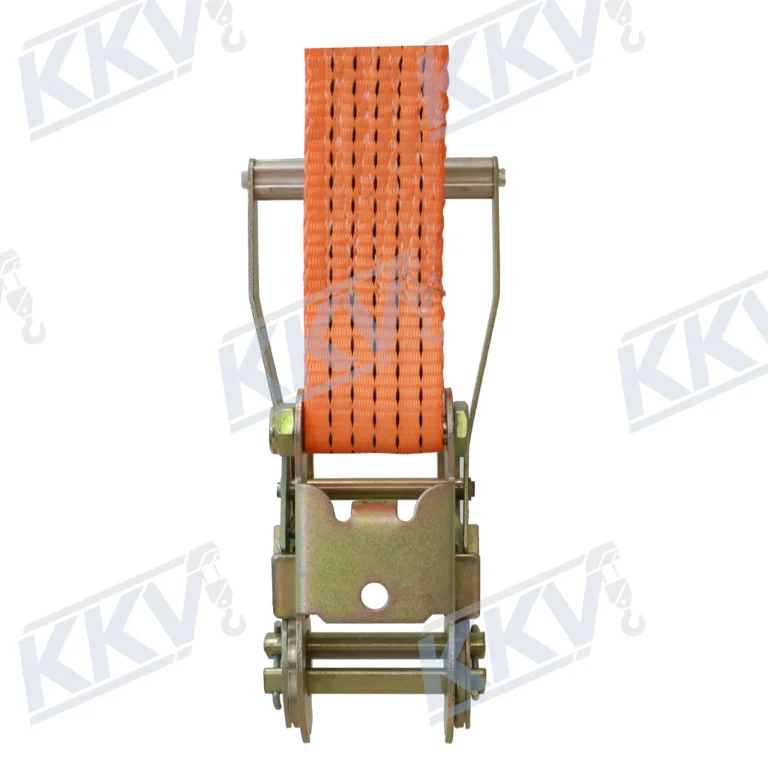

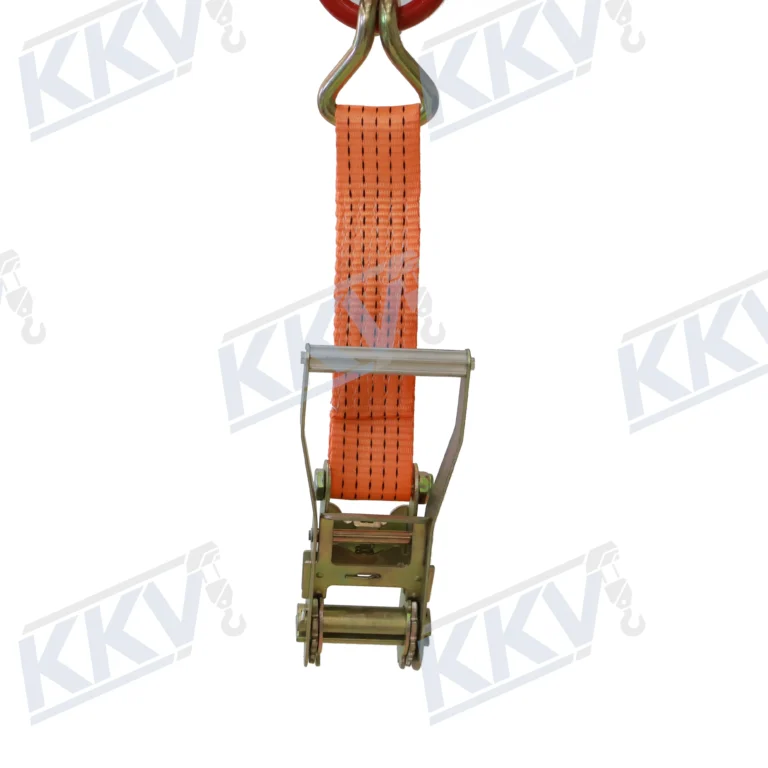

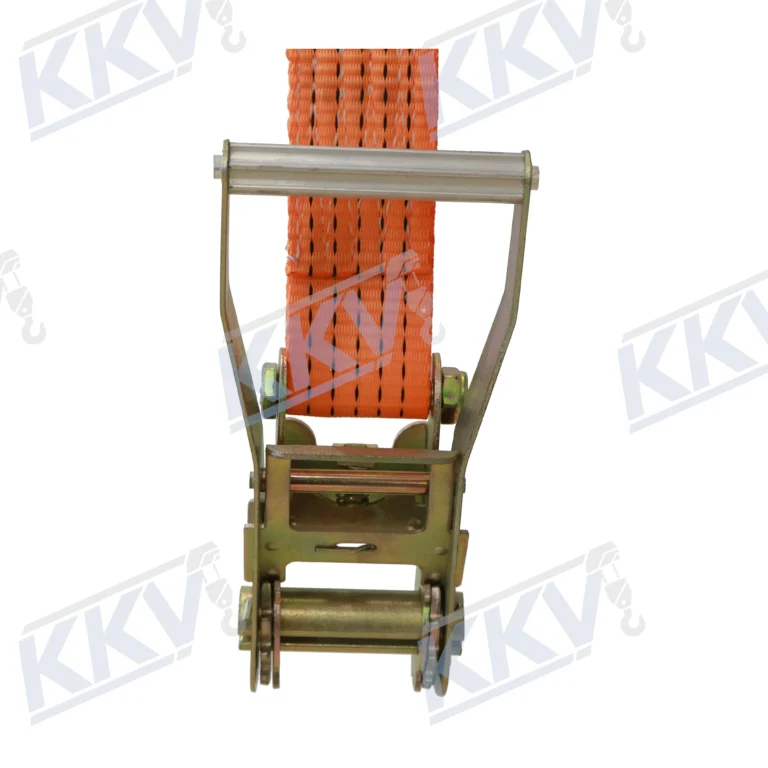

CL/RTD Ratchet Tie-Down Strap

The CL/RTD Ratchet Tie-Down Strap is designed
for securing cargo during transportation, storage and general
material handling. Available in multiple webbing widths,
Working Load Limits, lengths and end-fitting configurations.

  • Webbing widths from 25 mm to 100 mm.
  • Listed Working Load Limits from 150 kg to 3350 kg.
  • Minimum Breaking Strength up to 10000 kg.
  • Manufactured in accordance with EN 12195-2:2000.
  • Different end fittings available for different anchoring requirements.
  • Custom lengths and alternative packaging available upon request.
  • Supplied with a declaration of conformity.
  • For cargo securing only — not for overhead lifting or towing.


Click to view specifications

SKU: CL/RTD Category:

Description

CARGO SECURING & LASHING

CL/RTD Ratchet Tie-Down Strap for Cargo Securing

The CL/RTD Ratchet Tie-Down Strap is designed
for securing cargo on trucks, trailers, containers and other
transportation or storage systems where controlled webbing
tension is required.

The ratchet mechanism allows the operator to progressively
tension the webbing around or over the cargo, helping hold
the load in position during transportation and handling.

The current CL/RTD range includes webbing widths from
25 mm to 100 mm, with listed Working Load
Limits from 150 kg to 3350 kg and Minimum
Breaking Strength values up to 10000 kg.

CL RTD Ratchet Tie Down Strap Product Details

CARGO CONTROL

Adjustable Webbing Tension for Transported Loads

CL/RTD straps are intended for
cargo restraint rather than lifting.
The webbing, ratchet mechanism and end fittings form a
complete securing assembly for holding goods in position.

01

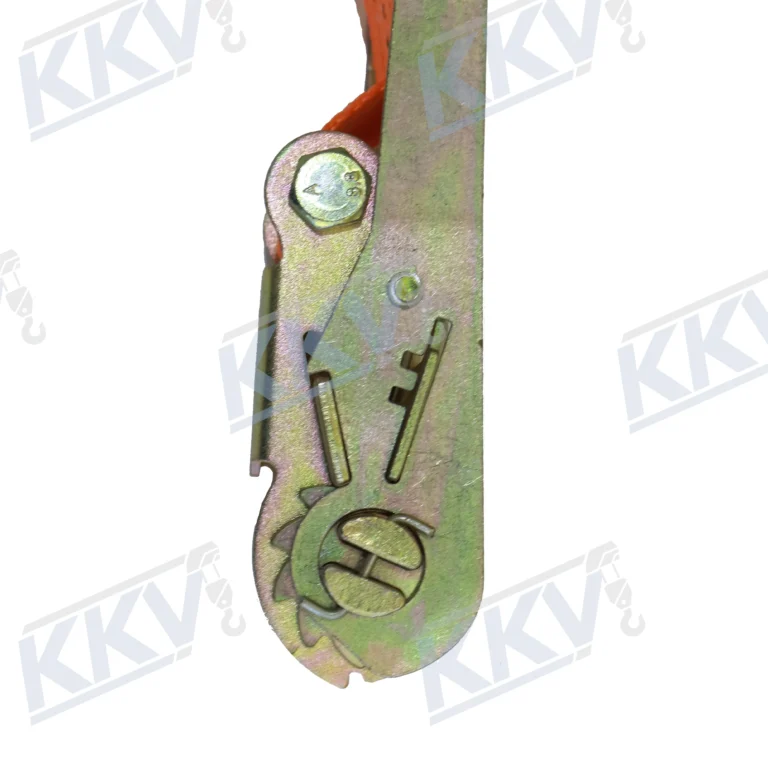

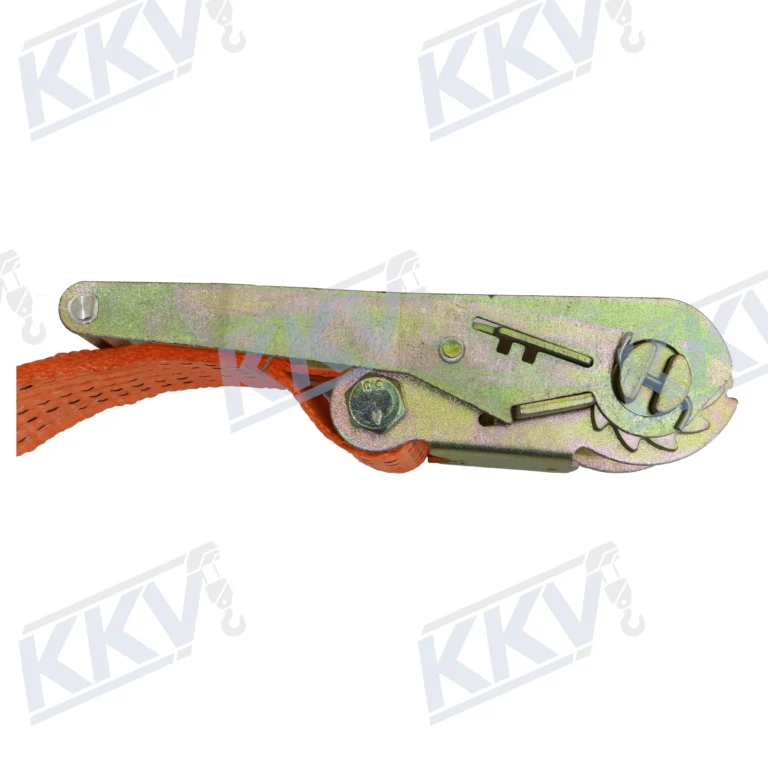

Ratchet Tensioning

The mechanical ratchet allows progressive tightening
of the webbing to secure the cargo.

02

Multiple Webbing Widths

Available widths include 25, 38, 50, 75 and 100 mm
for different cargo-securing requirements.

03

Multiple Capacity Levels

Listed Working Load Limits range from 150 kg
to 3350 kg depending on the selected assembly.

04

Alternative End Fittings

Different end-fitting configurations are available
to suit different cargo anchoring arrangements.

CAPACITY RATINGS

Working Load Limit and Minimum Breaking Strength

Each CL/RTD configuration has its own
Working Load Limit (WLL) and
Minimum Breaking Strength (MBS).

The correct strap should be selected using the rated capacity
of the complete securing assembly rather than webbing width
alone.

Minimum Breaking Strength identification stripes are provided,
with each stripe representing
1 tonne of M.B.S.

WEBBING OPTIONS

Five Listed Webbing Width Groups

25 mm
WLL 150–350 kg
38 mm
WLL 500–800 kg
50 mm
WLL 1000–1650 kg
75 mm
WLL 2250–2650 kg
100 mm
WLL 2250–3350 kg

LENGTH CONFIGURATION

Fixed-End and Loose-End Lengths

The listed CL configurations use a
0.5 m fixed end, while loose-end length
varies according to strap width and model.

Longer or alternative lengths can also be supplied
according to ordering requirements.

END FITTING OPTIONS

Match the Strap to the Cargo Anchor Point

Different end fittings are available at additional cost,
allowing the tie-down assembly to be matched to different
vehicle, trailer or cargo anchoring arrangements.

Confirm the required fitting type together with strap width,
WLL and total length when requesting a quotation.

CL RTD Ratchet Cargo Lashing Strap Application

APPLICATIONS

CL/RTD Cargo Tie-Down Applications

Trucks

Securing cargo during road transportation where
adjustable webbing tension is required.

Trailers

Restraining machinery, equipment, palletized cargo
and other transported goods.

Containers

Supporting cargo restraint and load positioning
during container transportation.

Warehouses

Bundling and securing suitable goods during
storage and cargo-handling operations.

IMPORTANT SAFETY INFORMATION

Cargo Securing Only — Not a Lifting Sling


CL/RTD Ratchet Tie-Down Straps are not designed for
overhead lifting or towing.

Working Load Limit and Minimum Breaking Strength values on
this product page relate to the cargo-securing configuration
shown in the technical data and should not be interpreted
as lifting capacities.

STANDARD & DOCUMENTATION

EN 12195-2:2000 Cargo Lashing Configuration

The CL/RTD Ratchet Tie-Down Strap is listed as manufactured
in accordance with EN 12195-2:2000.

Each set is packed in plastic and supplied with a
declaration of conformity.

Alternative packaging can be supplied upon request.

SELECTION GUIDE

How to Select a CL/RTD Ratchet Tie-Down Strap

01

Determine Required WLL

Select a tie-down assembly whose rated Working
Load Limit is appropriate for the intended
cargo-securing application.

02

Select Webbing Width

Current options range from 25 mm to 100 mm.

03

Confirm Strap Length

Select fixed-end and loose-end lengths according
to the cargo and anchor-point arrangement.

04

Select End Fittings

Match the end-fitting configuration to the
available anchoring system.

05

Confirm Application

Use CL/RTD straps only for appropriate cargo
securing applications — never for overhead
lifting or towing.

INSPECTION & CARE

Check the Tie-Down Assembly Before Use

Inspect the webbing for cuts, tears, excessive abrasion
or visible deterioration.
Inspect the ratchet mechanism for deformation, damage
or abnormal operation.
Check end fittings and anchor connections before
tensioning the strap.
Confirm the required WLL for the intended cargo-securing
application before use.
Avoid positioning damaged webbing over sharp or abrasive
cargo edges without suitable protection.
Do not use the product for overhead lifting or towing.

CL/RTD RATCHET TIE-DOWN STRAP

Need Help Selecting a Cargo Tie-Down?

Compare Working Load Limit, Minimum Breaking Strength,
webbing width, strap length and end-fitting requirements
before selecting your CL/RTD configuration.

Additional information

Webbing Width

25–100 mm
Working Load Limit

150–3,350 kg
Minimum Breaking Strength

450–10,000 kg
CARGO LASHING TECHNICAL DATA

CL/RTD Ratchet Tie-Down Strap Specifications

Compare webbing width, Working Load Limit, Minimum Breaking Strength, strap length, product weight and packing data.

Important: These products are for cargo securing and are not designed for overhead lifting or towing.

Part No. Width (mm) WLL (kg) WLL (lb) MBS (kg) MBS (lb) Fixed End (m) Loose End (m) Net Weight (kg) Sets / Carton Carton Dimensions (cm)
CL 2501 25 150 330 450 990 0.5 2.5 0.38 90 49 × 30 × 29
CL 2502 25 200 440 600 1320 0.5 2.5 0.40 85 49 × 30 × 29
CL 2503 25 250 550 800 1650 0.5 2.5 0.42 80 49 × 30 × 29
CL 2504 25 300 660 900 1980 0.5 2.5 0.43 75 49 × 30 × 29
CL 2505 25 350 770 1000 2310 0.5 4 0.50 60 49 × 30 × 29
CL 3801 38 500 1100 1500 3300 0.5 4 0.80 25 49 × 30 × 29
CL 3802 38 650 1430 2000 4290 0.5 5.5 1.10 20 49 × 30 × 29
CL 3803 38 800 1750 2500 5250 0.5 5.5 1.30 20 49 × 30 × 29
CL 5001 50 1000 2200 3000 6600 0.5 7.5 2.00 12 49 × 30 × 29
CL 5002 50 1150 2500 3500 7500 0.5 7.5 2.20 12 49 × 30 × 29
CL 5003 50 1350 3000 4000 9000 0.5 7.5 2.40 12 49 × 30 × 29
CL 5004 50 1500 3300 4500 9900 0.5 7.5 2.50 12 49 × 30 × 29
CL 5005 50 1650 3600 5000 10800 0.5 7.5 2.60 12 49 × 30 × 29
CL 7501 75 2250 5000 6800 15000 0.5 8.5 5.10 3 49 × 30 × 29
CL 7502 75 2650 5800 8000 17400 0.5 8.5 6.30 3 49 × 30 × 29
CL 10001 100 2250 5000 6800 15000 0.5 9.5 5.80 3 49 × 30 × 29
CL 10002 100 2650 5800 8000 17400 0.5 9.5 7.00 3 49 × 30 × 29
CL 10003 100 3350 7350 10000 22050 0.5 9.5 8.80 3 49 × 30 × 29
