Mobile drum carrier

The HD80 Series Drum Rotator and Tilter is designed for transporting,
rotating, tilting, positioning, and draining fully loaded industrial
drums. Its locking-handle mechanism securely holds the drum and allows
the operator to position it horizontally or vertically for convenient
dispensing and material handling.

  • Designed for transporting, rotating, tilting, positioning, and
    draining fully loaded drums.

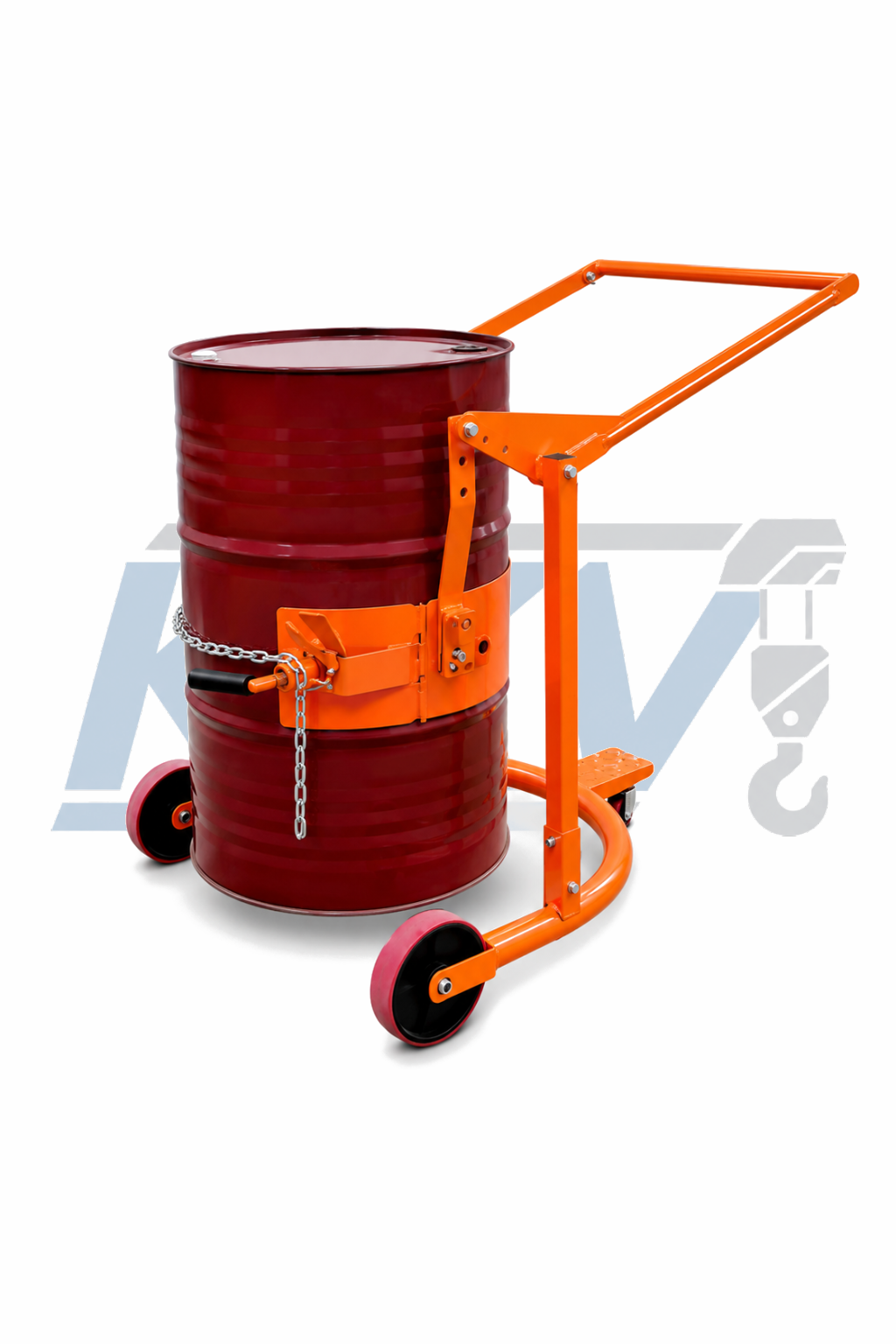

  • HD80A is suitable for handling 55-gallon steel drums.

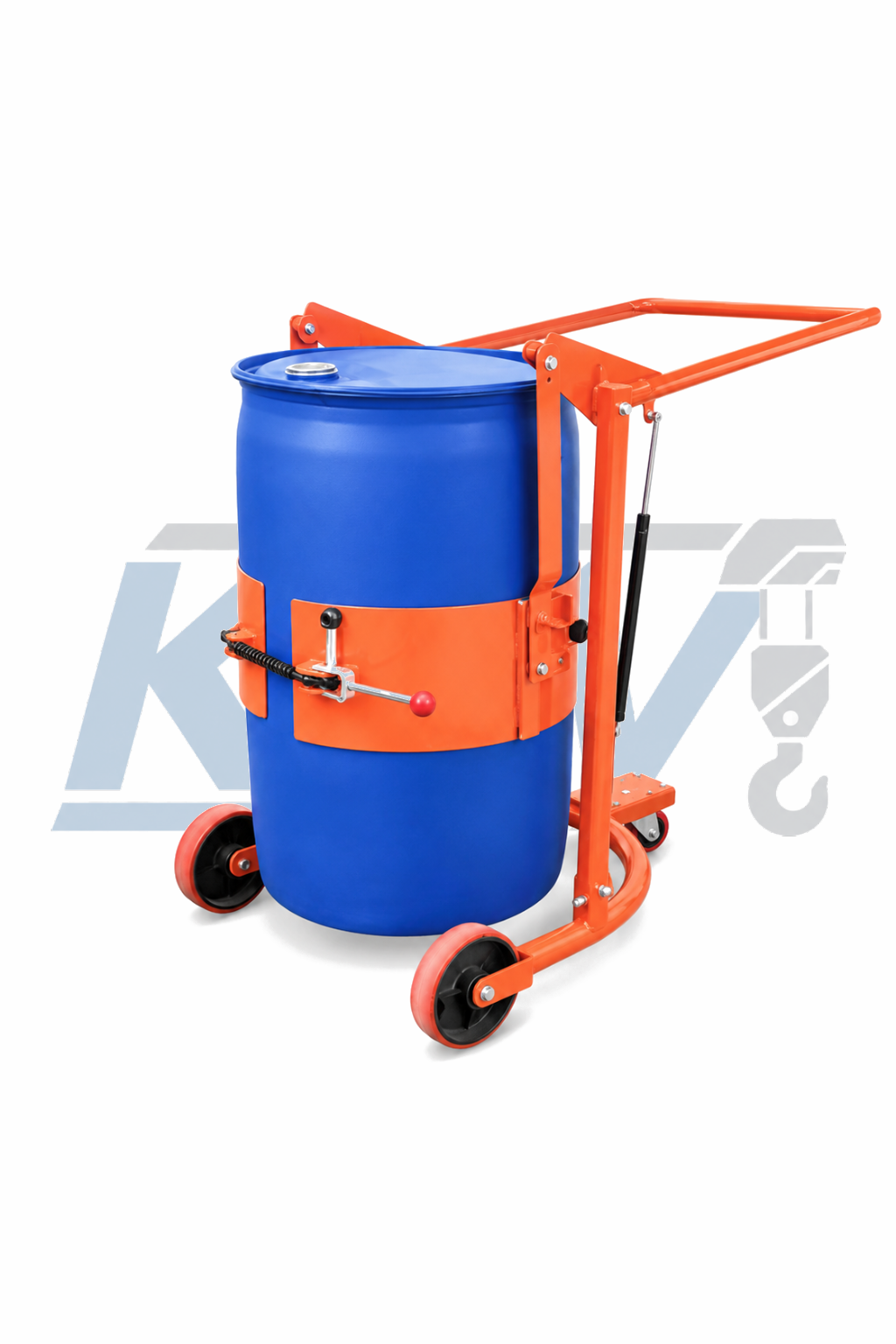

  • HD80B is suitable for handling 55-gallon steel drums and
    210-liter plastic drums.

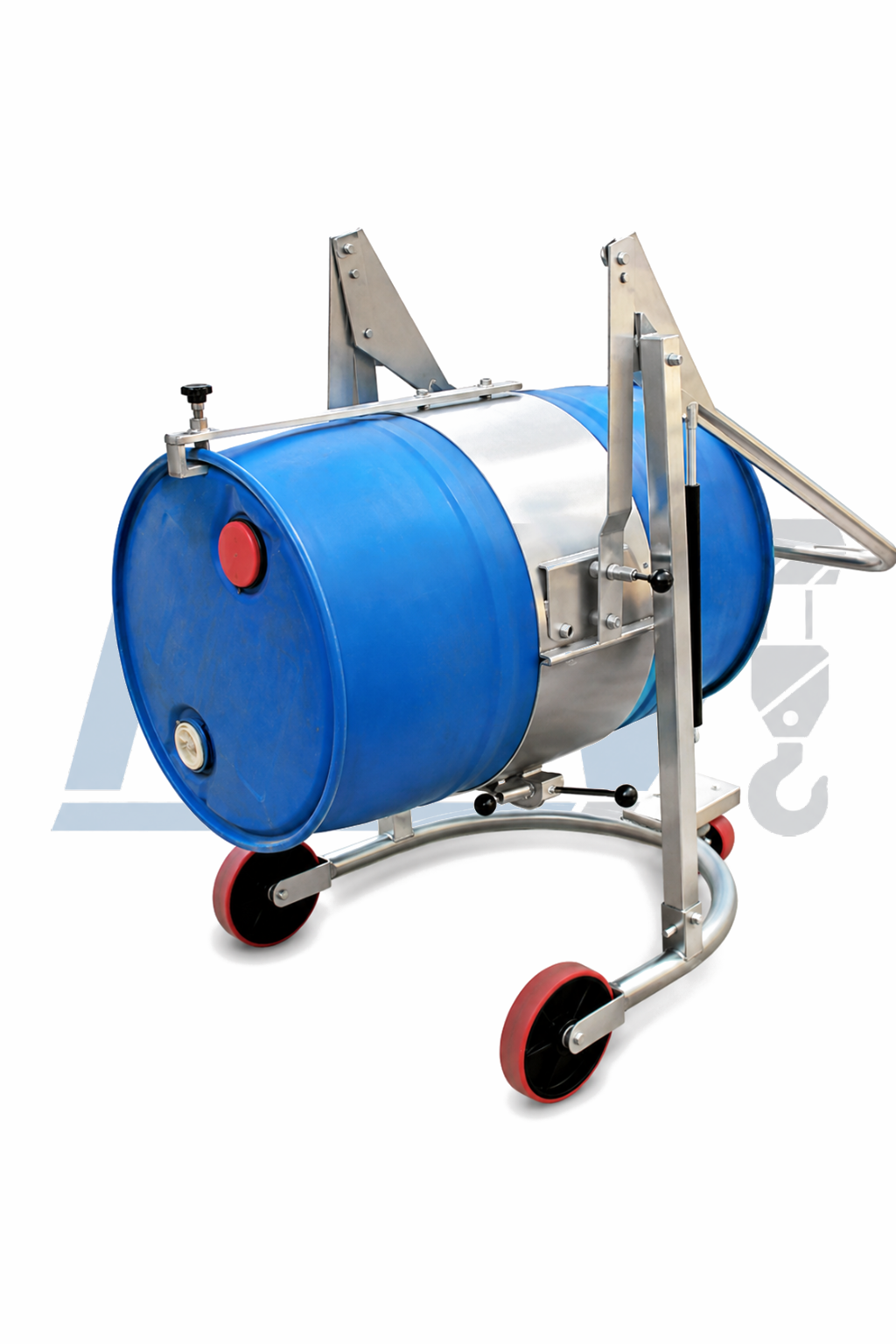

  • HD80C is manufactured from stainless steel for applications
    requiring improved corrosion resistance.
  • The locking handle securely holds the drum for easy pouring and
    horizontal or vertical positioning.
  • Releasing the locking handle allows the drum to rotate, making it
    suitable for stirring or mixing the drum contents.
  • Suitable for factories, warehouses, chemical plants,
    food-processing facilities, and other industrial drum-handling
    environments.


Click to view specifications

Description

Model Unit HD80A HD80B HD80C
(Stainless Steel)
Load Capacity kg 363 363 363
Ground Clearance (Horizontal) mm 150 / 270 / 350 200 / 300 / 350 200 / 300 / 350
Ground Clearance (Vertical) mm 200 200 200
Net Weight kg 50 45 45
Wheel Size (Front / Rear) mm Ø200 × 50 / Ø100 × 30 Ø200 × 50 / Ø100 × 50 Ø200 × 50 / Ø100 × 50

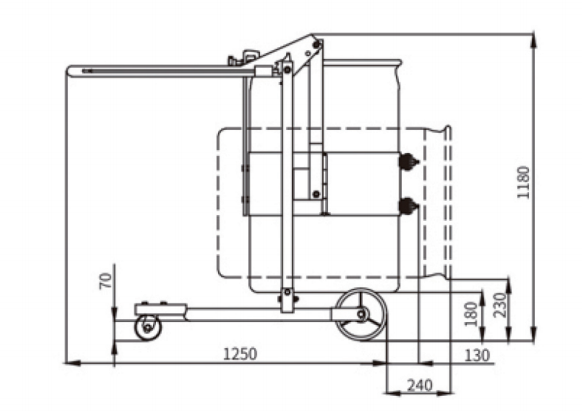

HD80 Series drum rotator and tilter

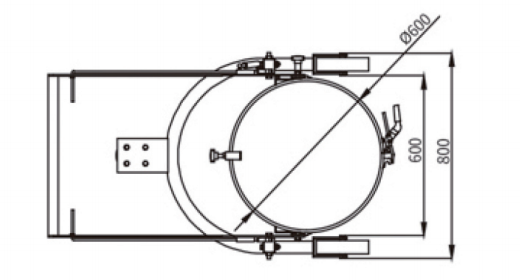

HD80 Series drum rotator dimensions and operation
