HHBS（Wire rope winch）

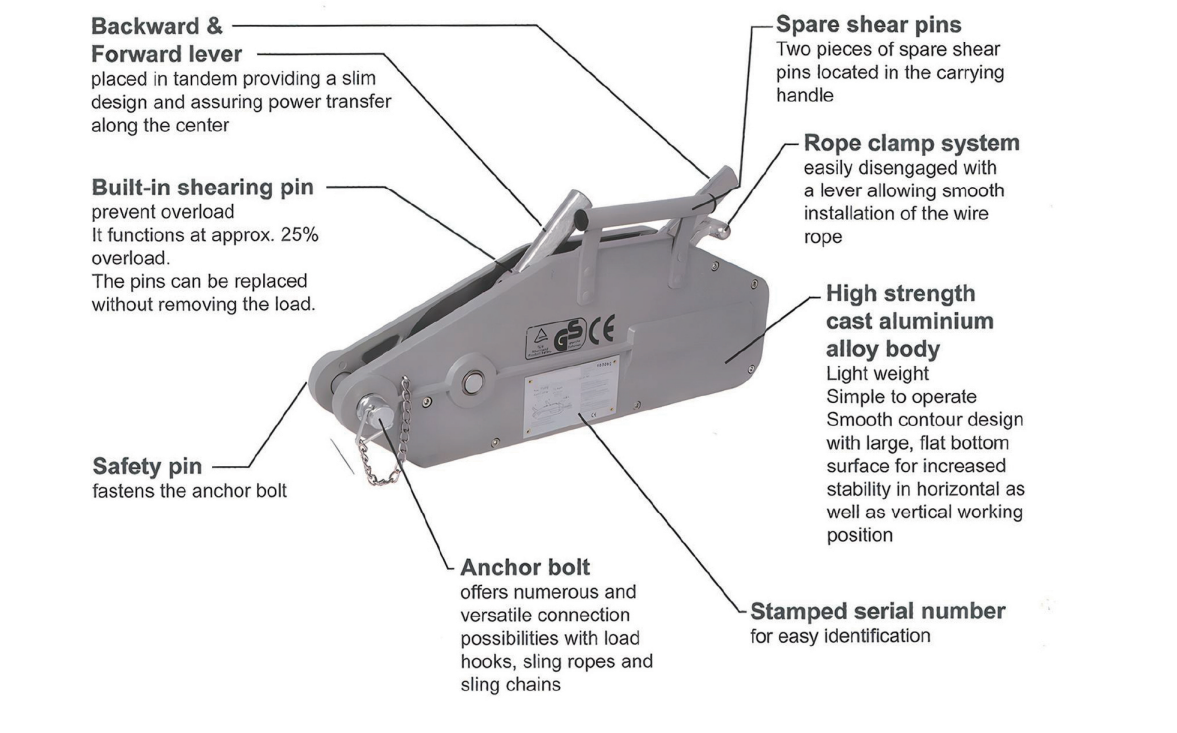

The HHBS hand-operated wire rope winch is a compact and portable pulling device designed for lifting, pulling, tensioning and positioning operations. It is suitable for construction sites, factories, mines, warehouses, shipyards and outdoor workplaces where electrical power is unavailable.
- Compact structure and easy manual operation.

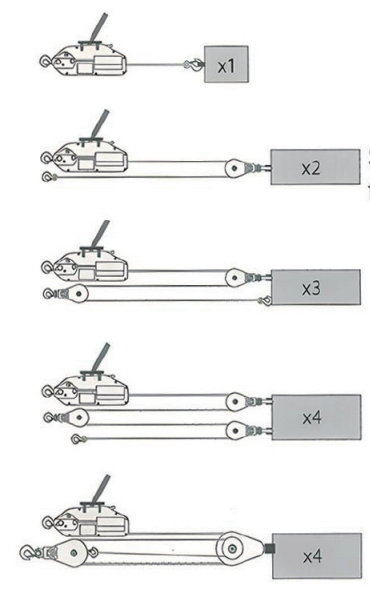

- Suitable for horizontal pulling and vertical lifting applications.
- Durable wire rope provides reliable performance under demanding conditions.
- Long operating handle reduces the effort required during operation.
- Available in multiple rated capacities for different lifting and pulling requirements.
- Portable design makes transportation and on-site use more convenient.
Description
Technical Specifications
| Model | HHBS 0.8 | HHBS 1.0 | HHBS 1.6 | HHBS 3.2 |
|---|---|---|---|---|
| Rated Capacity (t) | 0.8 | 1 | 1.6 | 3.2 |
| Rated Forward Travel (mm) | ≥ 52 | ≥ 52 | ≥ 55 | ≥ 28 |
| Effective Length of Forward Handle (mm) | 852 | 852 | 1200 | 1200 |
| Drive Steps | 1 | 1 | 1 | 2 |
| Wire Rope Diameter (mm) | 8 | 8 | 11 | 16 |
| Standard Wire Rope Length (m) | 10 / 20 | 10 / 20 | 10 / 20 | 10 |
| Net Weight (kg) | 6 | 6 | 12 | 23 |
| Rated Forward Hand Force (N) | ≤ 284 | ≤ 353 | ≤ 412 | ≤ 441 |
| Overall Dimensions L × W × H (mm) | 428 × 64 × 235 | 428 × 64 × 235 | 545 × 97 × 286 | 660 × 116 × 350 |
